Supplied By www.heating spares.co Tel. 0161 620 6677
27

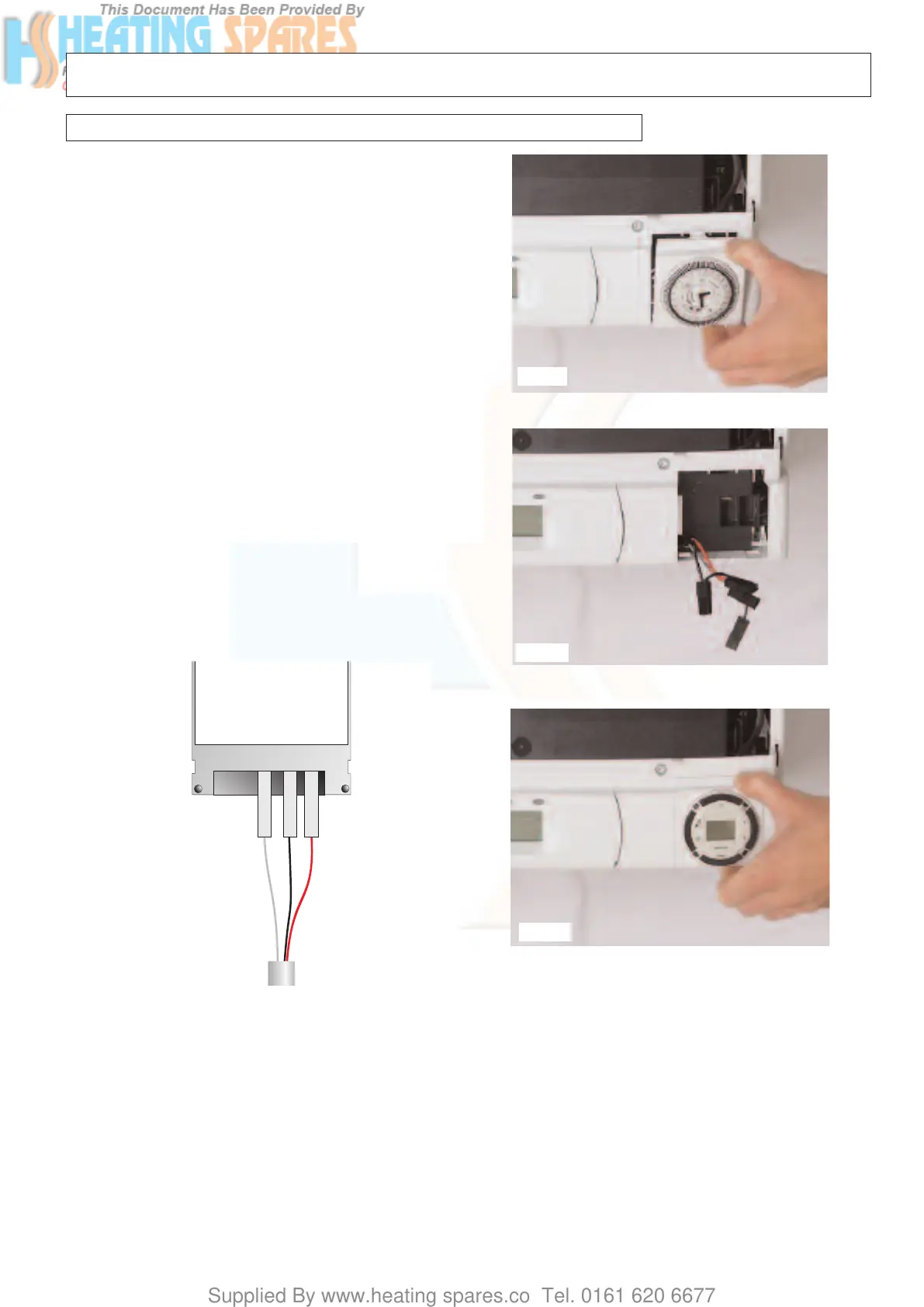

13. Electrical connections (continued)
13.1 Fitting the Digital Time Clocks
To fit the digital time clock it is necessary to proceed as follows;
(this should only be carried out by a competent engineer)
- Isolate the electrical supply to the appliance;
- Remove the front panel as described in Section 18.1.1;
- Remove the plastic cover with the mecanical time clock on
the right hand side (Fig. 33) and pull out the 4 wires (Fig. 34);
N
OTE: THE WIRES MAY BE TUCKED BEHIND THE ELECTRICAL COVER.
- Connect the time clock wires as follows;
DIGITAL MODEL (Fig. 36)
Red Wire - Contact 1
Black Wire - Contact 2
Grey Wire - Contact 3
N
OTE:SECOND BLACK WIRE IS NOT CONNECTED.
- Push the clock back into the panel and refit the casing panel
(Fig. 37).
3
2
1
G
B
R
Fig. 33
Fig. 34
Fig. 36
Fig. 37
