13
3. installation

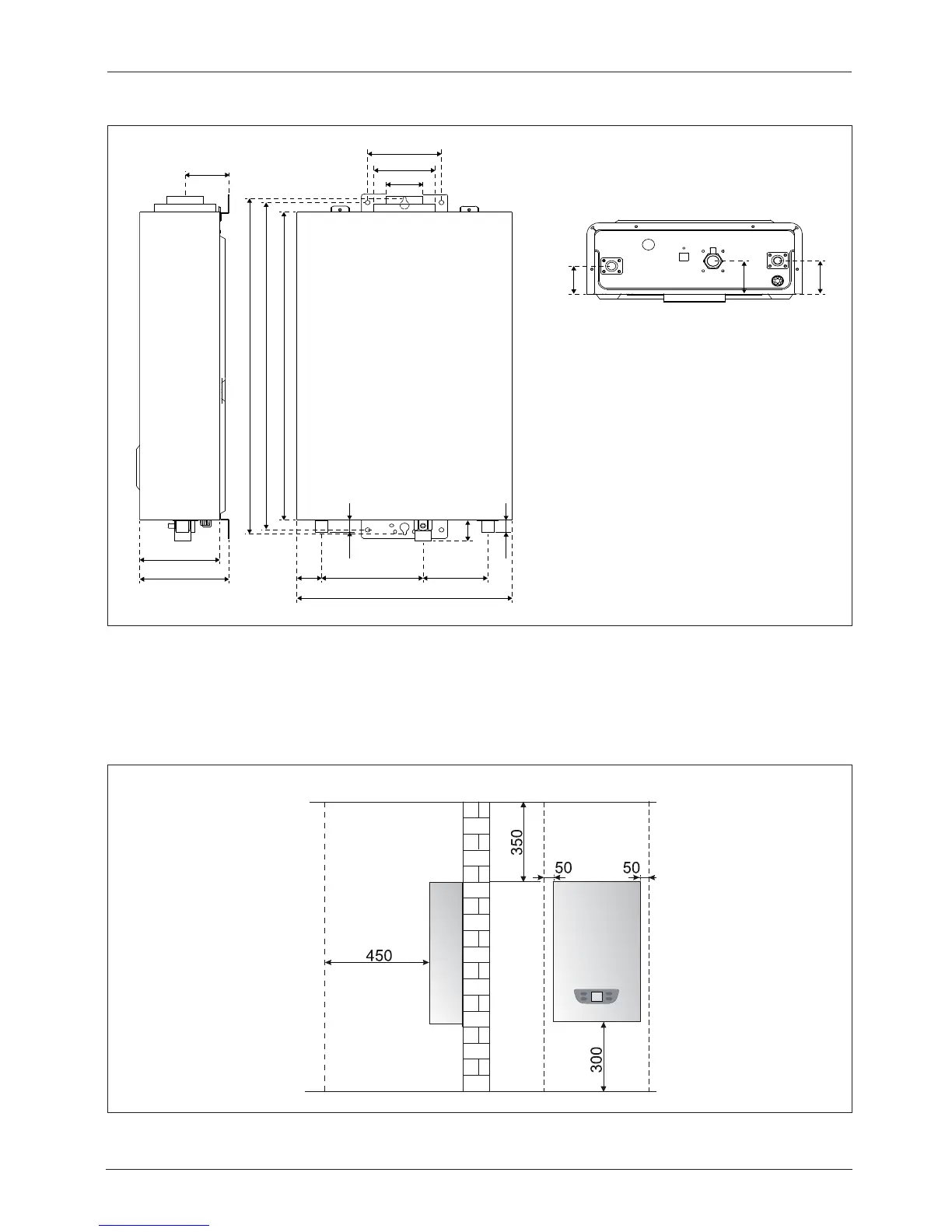

3.6. Appliance Dimensions
130
145
75
120
Ø100
Ø60
40 165
105
350
22
613
599
563
22
38
B
C
D
G
51
60
61
B. Hot water outlet 1/2”
C. Gas inlet 3/4”
D. Cold water inlet1/2”
G. Drain valve
Cold water inlet fi lter
3.7. Minimum clearances
In order to allow easy access to the appliance for maintenance
operations.
The appliance must be installed in accordance with the
clearances stated below.
The following elements are supplied with
the heater:
1x 15mm gas inlet isolation tap
complete with washer
1x 15mmx1/2” swivel nut 90° brass
connector for the hot water outlet
complete with washer
1x 15mm cold water inlet isolating valve
complete with washer
