3. installation
3.9. FITTING THE FLUE
The appliance must not be installed with a fl ue supplied by
another manufactuer.
The appliance is supplied ready for connection to a concentirc
air intake and exhaust outlet system.
IMPORTANT!!
The fl ue duct must not be in contact with infl ammable
materials, a seperation of at least 5mm must be between
the fl ue duct and structures or walls made of fl ammable
materials. When replacing an old appliance, the fl ue must
be changed.
Ensure the fl ue is not blocked, that the exhaust duct joints
are fi tted correctly and do not leak products of combustion
into the air inlet.
3.9.1. Fitting the Coaxial Flue (Ø 60/100 Horizontal)
Contents of fl ue (3318643):
2X silicone o-ring (60mm)
1X elbow (90º)
2X wall seals (internal & external)
1X fl ue pipe including terminal
2X fl ue clamps
4X screws
2X fl ue clamp seals

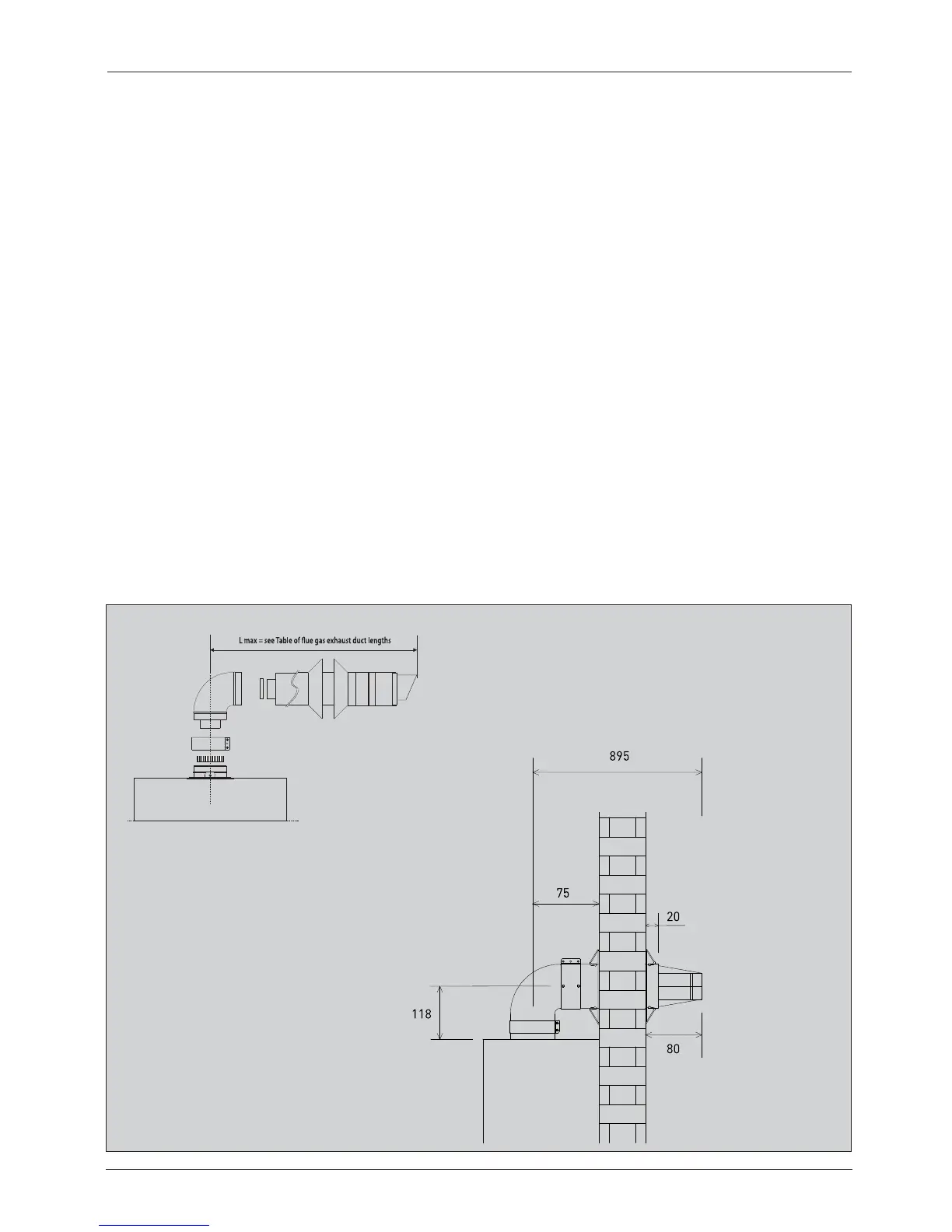

Fig. 2
