SYSTEM DESCRIPTION
System composition
NIMBUS COMPACT M system consists of:
- External unit
- Internal unit
- System interface
- Outdoor sensor
- Sensys Net for connectivity
For more information on available accessories, please
refer to the product catalogue.

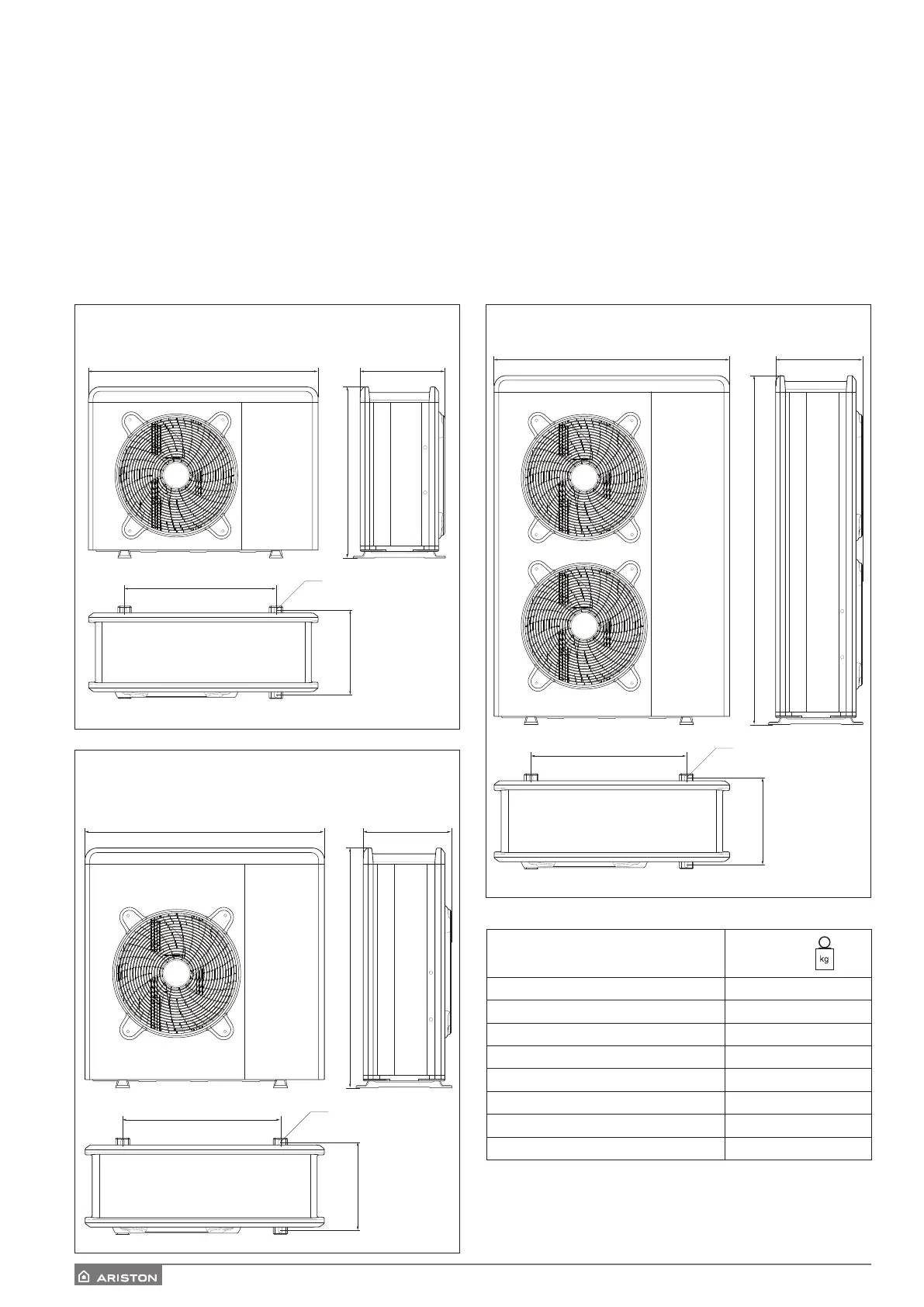

Weights and dimensions (mm)
EXTERNAL UNIT
Weight
40 M EXT
79
50 M EXT
79
70 M EXT
104
70 M- T EXT
121
90 M EXT
150
90 M- T EXT
150
110 M EXT
150
110 M- T EXT
150
EXTERNAL UNIT
As external unit, one of the following
models is provided:
• NIMBUS 40 M EXT
• NIMBUS 50 M EXT
• NIMBUS 70 M EXT
• NIMBUS 70 M-T EXT
• NIMBUS 90 M EXT
• NIMBUS 90 M-T EXT
• NIMBUS 110 M EXT
• NIMBUS 110 M-T EXT
40M -50M EXT 90M - 90M T- 110M - 110M T EXT
756
383
1016
670
ø 10
374
1106
383
1016
670
ø 10
374
70M - 70M T EXT
1506
383
1016
670
ø 10
374
