Ariston NIMBUS COMPACT M NET - Internal Unit FSP 1 Zone Details; Weights and Dimensions; Overall View and Components

55 / GB
1
2
3
4
5
67
8
9
10
11
12
1. Temperature sensor (return to the installation)
2. Discharge valve
3. Expansion vessel
4. Manometer
5. Safety valve 3 bar
6. Pressure switch
7. Automatic air purge
8. Heating back-up resistance (2 kW + 2 kW)
9. Three-way valve (diverter valve)
10. Safety thermostat (automatic switch)
11. Safety thermostat (manual switch)
12. Temperature sensor (flow to the installation)
heating/cooling
INTERNAL UNIT FSP 1 ZONE

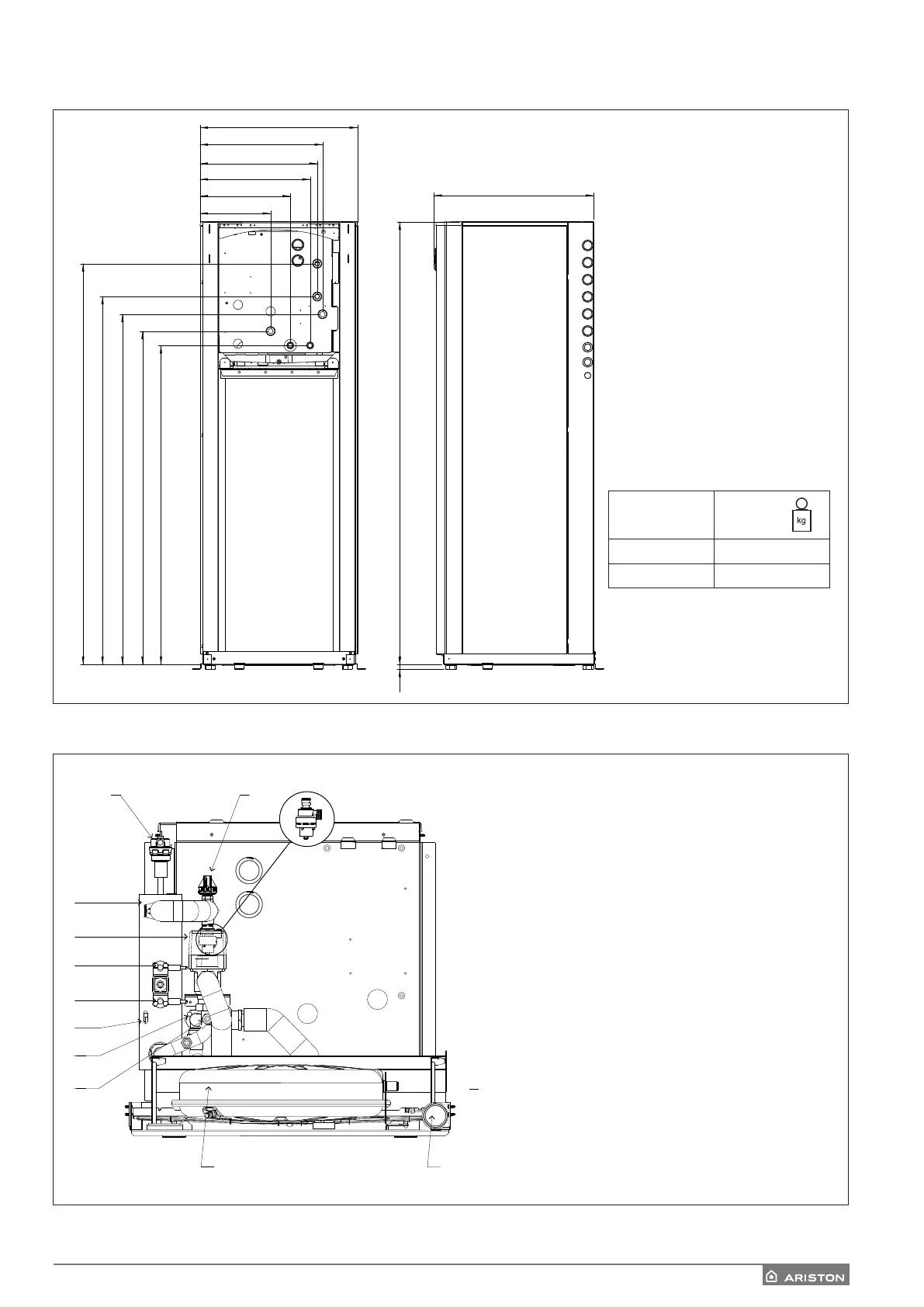

Weights and dimensions (mm)
Overall view
A. Hot/cold water delivery from
external unit G 1” M.
B. Cold/hot water return to
external unit G 1”M.
C. Hot/cold water delivery
to system G 1” M.
D. Cold/hot water return from system
G 1” M.
G. Hot domestic water outlet G 3/4” M.
H. Cold domestic water inlet G 3/4” M.
INTERNAL
UNIT
Weight
1 ZONE 117
1 ZONA L 118
1523
1398
1331
1267
1212
598
465
445
417
342
268
A
B
C
D
G
H
606
1683
18
