AZI Customer Service 800-528-7411 or 602-470-1414 Page 14 of 92

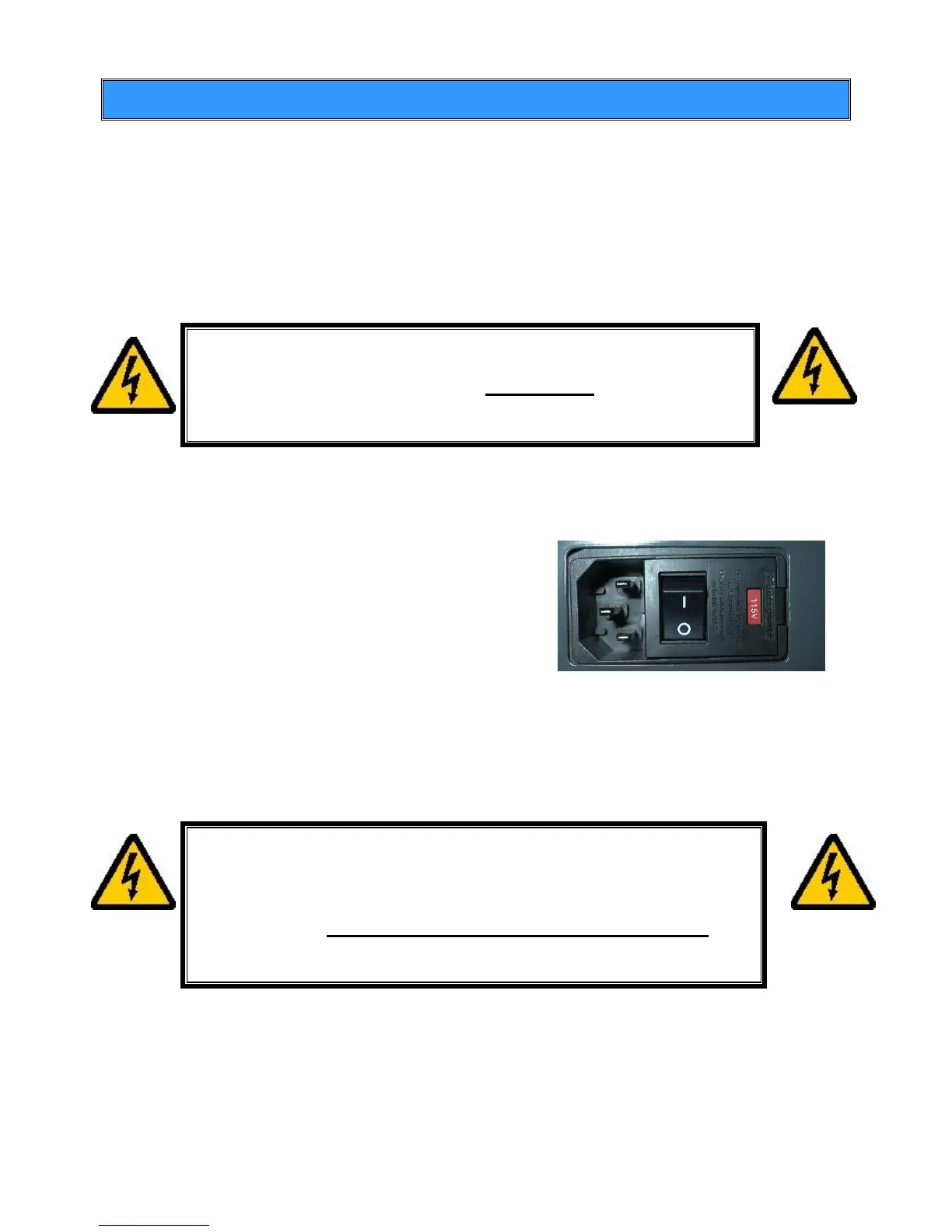

4.2. AC Power Connection
The MAX 5000XL can be used with a 100-130 VAC or a 220-240 VAC input power
source. Check the setting on the fuse holder, located at the rear of the instrument, and
make sure it is set for the correct voltage for your environment.
Ensure the AC power receptacle is set for the correct voltage for
your environment. For best results, AZI recommends that the
instrument is provided with its own DEDICATED electrical power
outlet. Do not put it on a circuit with motors, blenders, heaters,
coolers, grinders, or other high current electrical devices.
To ensure the entry module is set for the correct voltage:
Locate the fuse holder on the rear of the instrument.
Pull the fuse access cover open and down.
Pry the fuse holder from the power entry
module.
Ensure only 8 amp timed fuses are installed
for 100-130 VAC operation or only 4 amp
timed fuses are installed for 220-240 VAC
operation.
Reinstall the fuse holder into the power entry module with the correct voltage
showing, as in the picture above which shows 115V configuration.
Ensure the power switch, located next to the fuse holder, is in the OFF position.
Remove the power cord from the packing material and insert the rectangular end
into the power receptacle, located on the other side of the fuse holder.
The power source outlet used by the MAX 5000XL MUST BE
GROUNDED. (If you are not sure if the socket is grounded, check
with your plant electrician before proceeding). The MAX 5000XL
will appear to function correctly even if the socket is not
grounded, but there is a danger of possible electrocution! If
grounded outlets are not available, consider using a ground
fault interrupter to protect personnel against electrical shock.
100-130 VAC, 50/60 Hz @ 8 Amps – fuse is F8A T250V
220-240 VAC, 50/60 Hz @ 4 Amps – fuse is F4A T250V
Fused on/off switch is part of an EMI power entry module
