Arjo Malibu - Seat Attachment and Removal

13
Attach and Remove the Seat
Attach (4 steps)

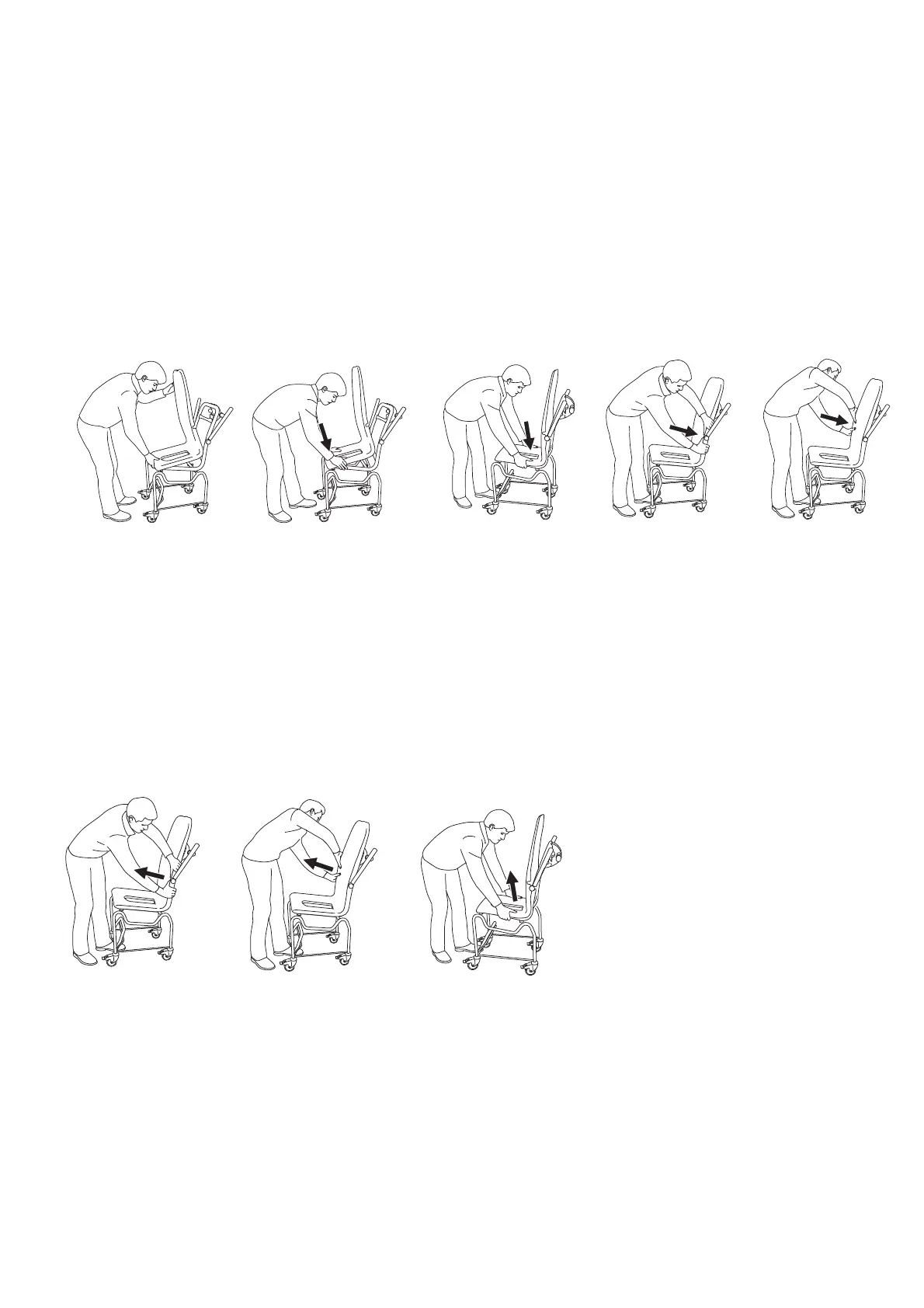

See Fig. 1
1 With both hands start pushing the front end of the seat
against the front frame.
2 Push down the bent part of the seat.
3 Push one side around the armrest and make sure it snaps
into place.
4 Repeat on the other side.
Remove (2 steps)
See Fig. 2
1 With both hands detach the seat on each side around the
armrest.
2 Repeat on the other side.
3 Pull the bottom of the seat straight up
Fig. 1
Fig. 2
