Electrical connection continued…
A pair of self-adhesive Velcro-type pads are provided. Attach
one to the side of the PSU case & the other to a suitable
location on the rear of the mounting panel.
Ensure the selected location does not stretch/stress the
cables. Consideration should also be given to keeping the
PSU case within easy reach/access for maintenance sta.
IMPORTANT:
Leave the sensor protective sticker in place for at least
20 seconds after powering-on the product. See section
7 regarding sensor ranging.

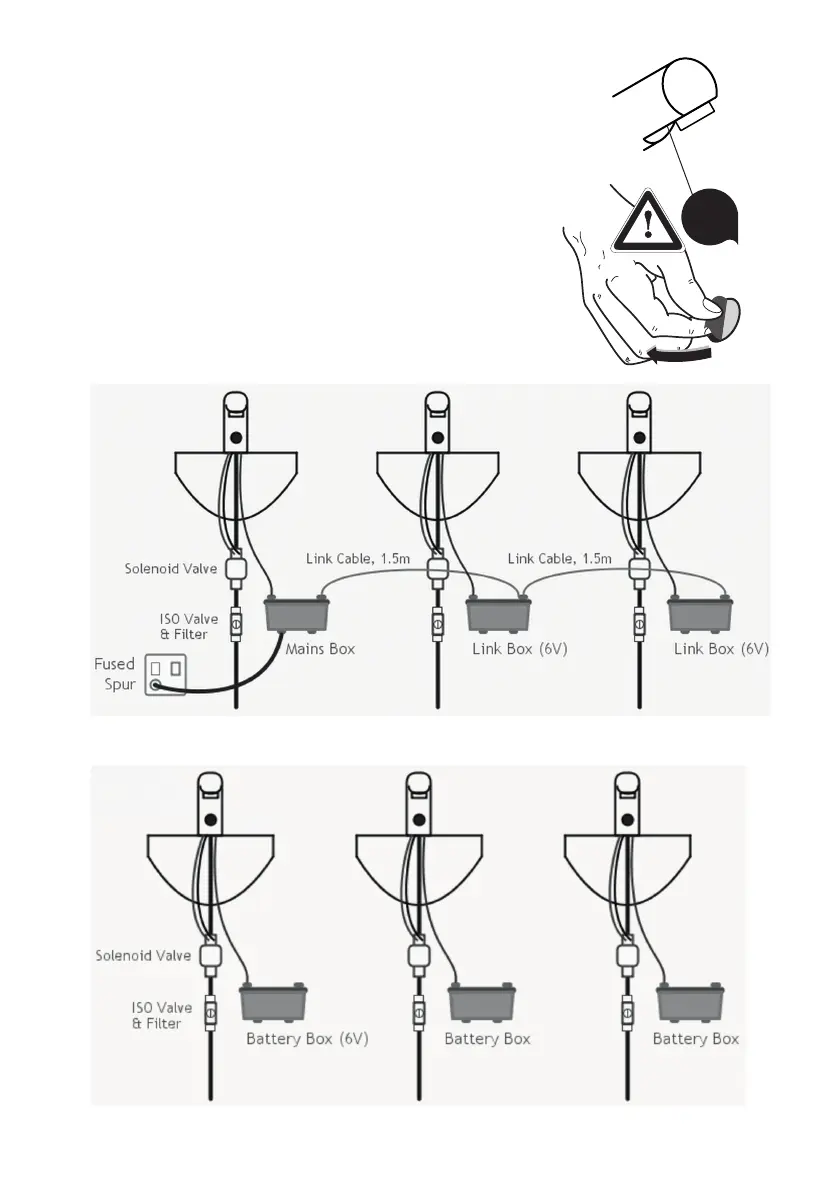

Example above of an installation where PSUs are all battery versions..
Example of an installation where 1st PSU is mains plus 2x link PSUs.
