Maintenance continued…

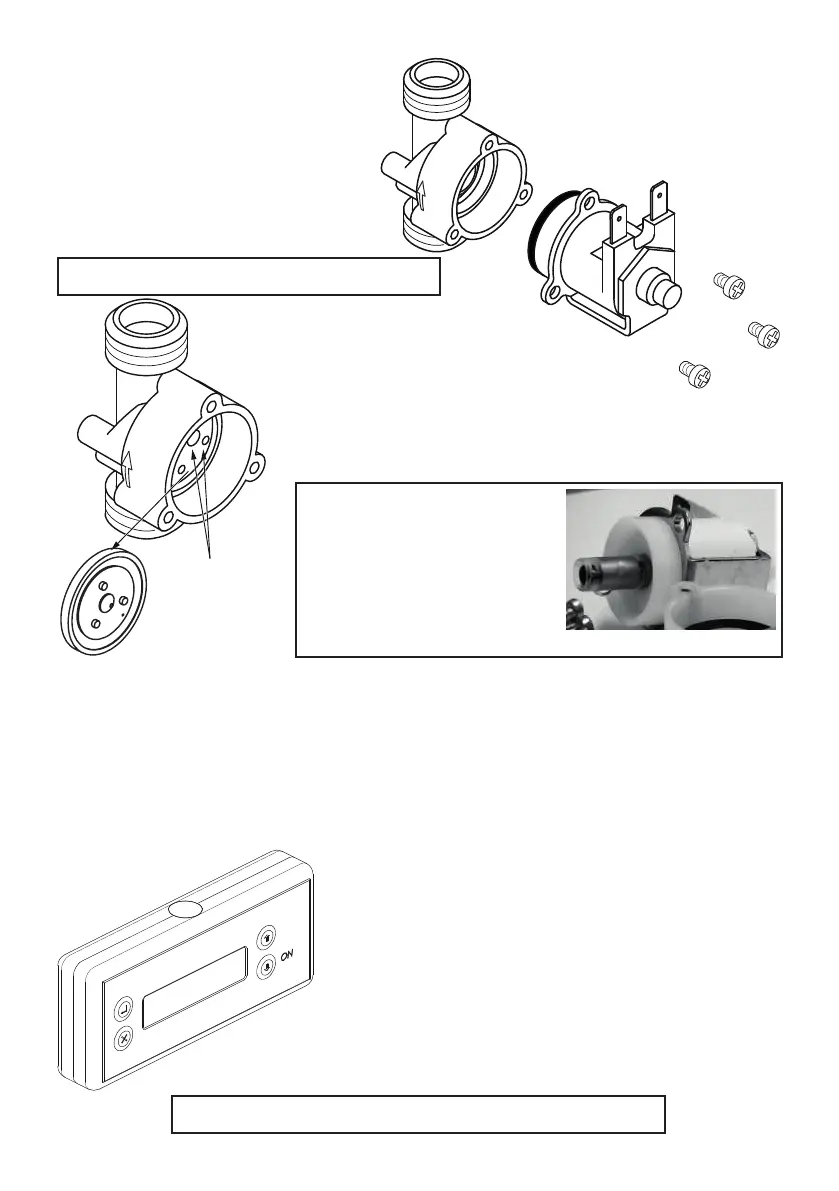

• Remove the 3 screws holding the coil.
• Lift o the coil assembly.
• Locate the diaphragm
(inside the valve body).
• Clean out the pilot hole(s) – use a
thin gauge fuse wire (or similar).
• Ensure there is no debris on the diaphragm
or the valve seat (under diaphragm).
• Re-assemble solenoid valve.
• Reconnect water supply, check there are no leaks.
• Reconnect the solenoid valve cables.
• Test the solenoid valve & ensure it is working correctly.
If diaphragm is damaged it should be replaced.
If the solenoid plunger
becomes dislodged from its
bore, ensure it is retted
correctly. The end with the
small black insert should
face towards the diaphragm.
Incorrect assembly will cause continual running.
Diaphragm
pilot hole(s)
9.2 Hygiene ush (Automatic)
The programming unit should be held pointing towards the sen-
sor at distance of approx. 100mm.
Once enabled, this function will automatically turn the water on
for a duration of 1 to 240 seconds if the product has not been
used for a period of 6, 12, 24, 48, or 72 hours.
This hygiene ush is an important optional function of these products which can be enabled by the in-
staller or maintenance sta using the optional remote programming unit (for part number see sect.10).
The hygiene ush is used to combat periods of stagnation due to low usage of the product. The func-
tion activates the spout automatically if it hasn’t been used for a set time period. This function ensures
regular movement of water combating bio lm growth and bacteria colonisation.
For full details on how to enable this function, refer to the
programming instructions supplied with programming unit.
Keep hand unit away from the water ow, avoid getting it wet.
