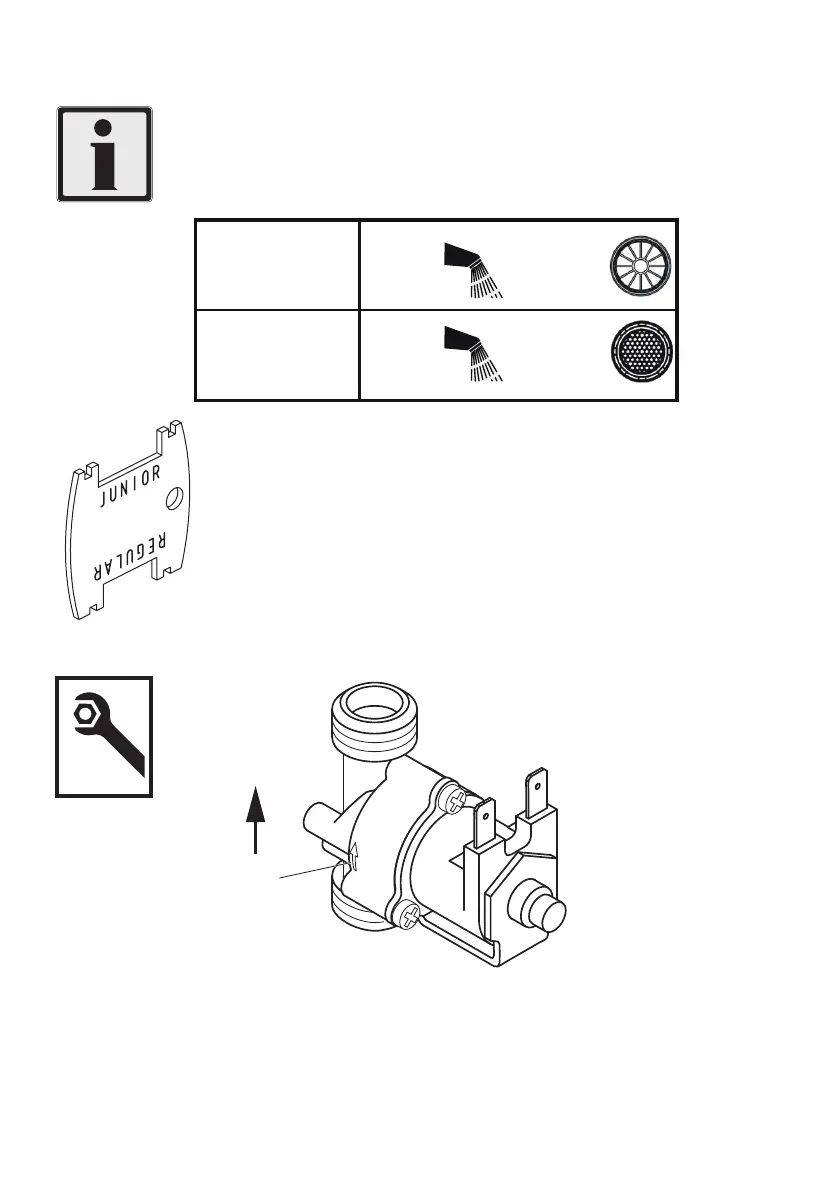

This product comes with two outlets one tted & the second supplied in a bag.
The product is factory tted with a laminar PCA regulated outlet which is secured
within an anti-vandal (AV) housing.
To replace/clean/service the outlet, use the outlet key supplied with the
product to unscrew the AV housing. Using the side of the key marked “jun-
ior” locate the key into the inner ring of the housing and unscrew. Change
the outlet & re-secure the housing with the key, ensuring the seal is in place.
Ensure the outlet housing is adequately tightened to prevent leaks & run back.
If water continues to ow when the tap should be o, and if the sensor is correctly ranged, then the
solenoid valve may have debris lodged in the diaphragm pilot hole or on the valve seat:
• Locate the solenoid valve.
• Isolate the water supplies.
• Disconnect the solenoid valve cables.
9.1 SOLENOID VALVE
16
8 OUTLET OPTIONS
9 MAINTENANCE
Q
4.7
P
l/min3.0 bar
Q
4.2
P
l/min0.5 bar
Unregulated
full-flow
flow straightener
(SUPPLIED LOOSE)
Regulated PCA
outlet (> 1.0 bar)
(FACTORY FITTED)
FLOW
DIRN
