installation &
operating instructions
Series 4300, 4360 and 4380
Vertical in–line pumps
10

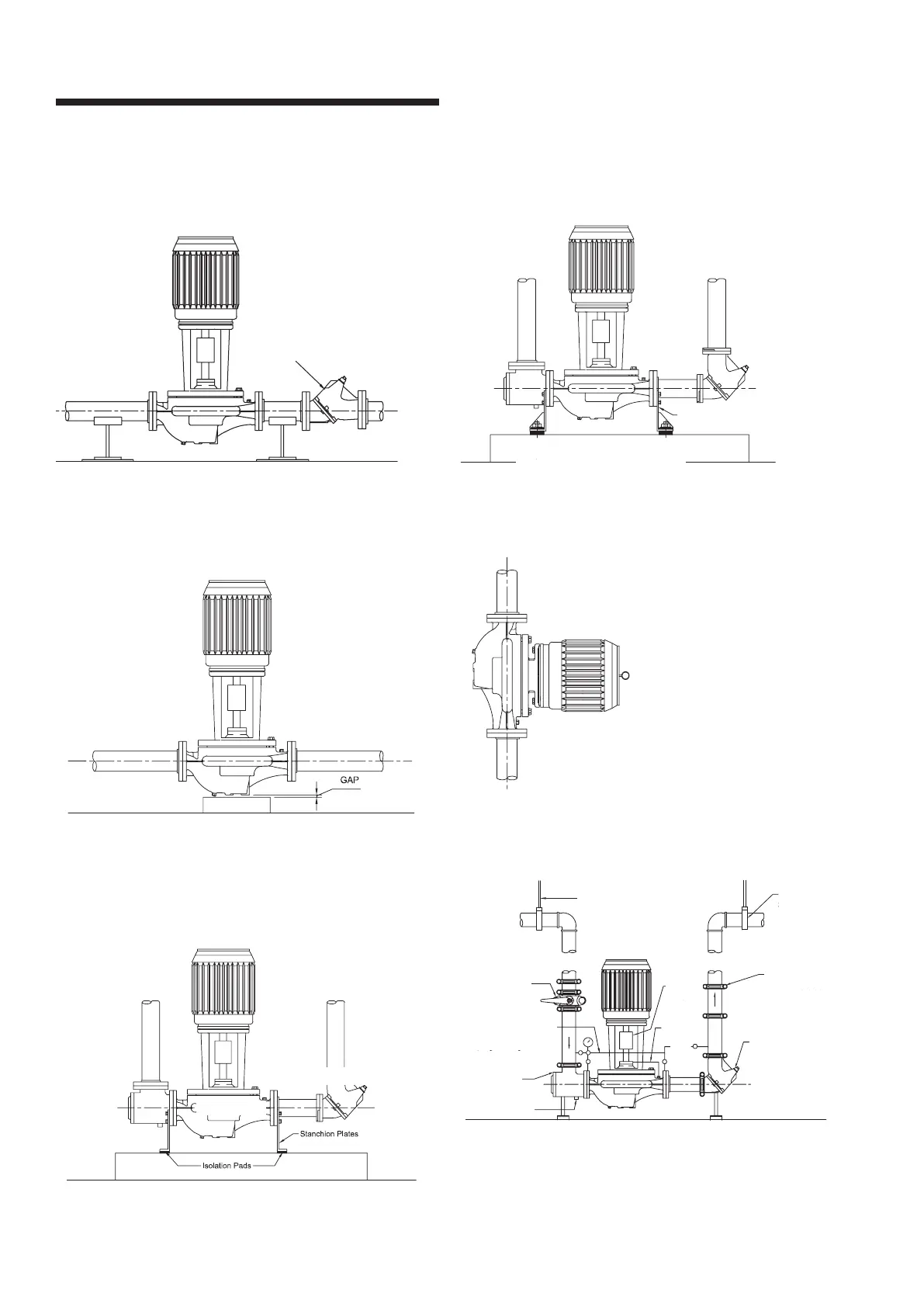

fig. 2.5 Floor saddle support.
fig. 2.6 Additional floor support.
fig. 2.7 With stanchion plates.
Seismically Rated Snubbers or
Pads and Concrete Foundation
fig. 2.8 Seismic region installation.
Seismically Rated Snubbers or
Pads and Concrete Foundation
fig. 2.9 Horizontal mounting – 4360/4380 only to
15 hp (11 kW).
Seismically Rated Snubbers or
Pads and Concrete Foundation
fig. 2.10 Mounting in grooved pipe systems.
Seismically Rated Snubbers or
Pads and Concrete Foundation
Flo-Trex valve
Isolation pads
Stanchion plates
Seismically rated snubbers or
pads and concrete foundation
Stanchion plates
Hangers support the weight
of the filled piping, pumps
and fittings
Pipe hanger (typ.)
See specification
for size and type
System outlet
Flo-Trex valve
Flush line
System inlet
Split
coupler
Gruvlok 7000 flex
coupling (typ.)
7700 butterfly
valve
Drain connection
Recommended field
pressure gauge piping
arrangement
Suction
guide
Pet
cock
(typ.)
For application with no suction guide, straight pipe of a length equivalent
minimum 4 times its diameter for 1.5-6" pumps and 6 times diameter for 8"
to 12" pumps will be required.
For application with no suction guide, straight pipe of a length equivalent
minimum 4 times its diameter for 1.5-6" pumps and 6 times diameter for 8"
to 12" pumps will be required.
