Armstrong The Brain DRV25 User Manual

43
Armstrong International
221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA
armstronginternational.com/brain
Emergency Mode / Motor Error
Maintenance to the DRV25 internal mechanism is
required. DRV25 continues to operate safely, but with
reduced performance. Check for the following:
• Motor damage or signs of wear
• Proportioning Assembly damage or signs of wear
• Debris in the Drive Assembly
If this mode is not addressed then it is likely the DRV25
will stop working and develop into a critical motor error.

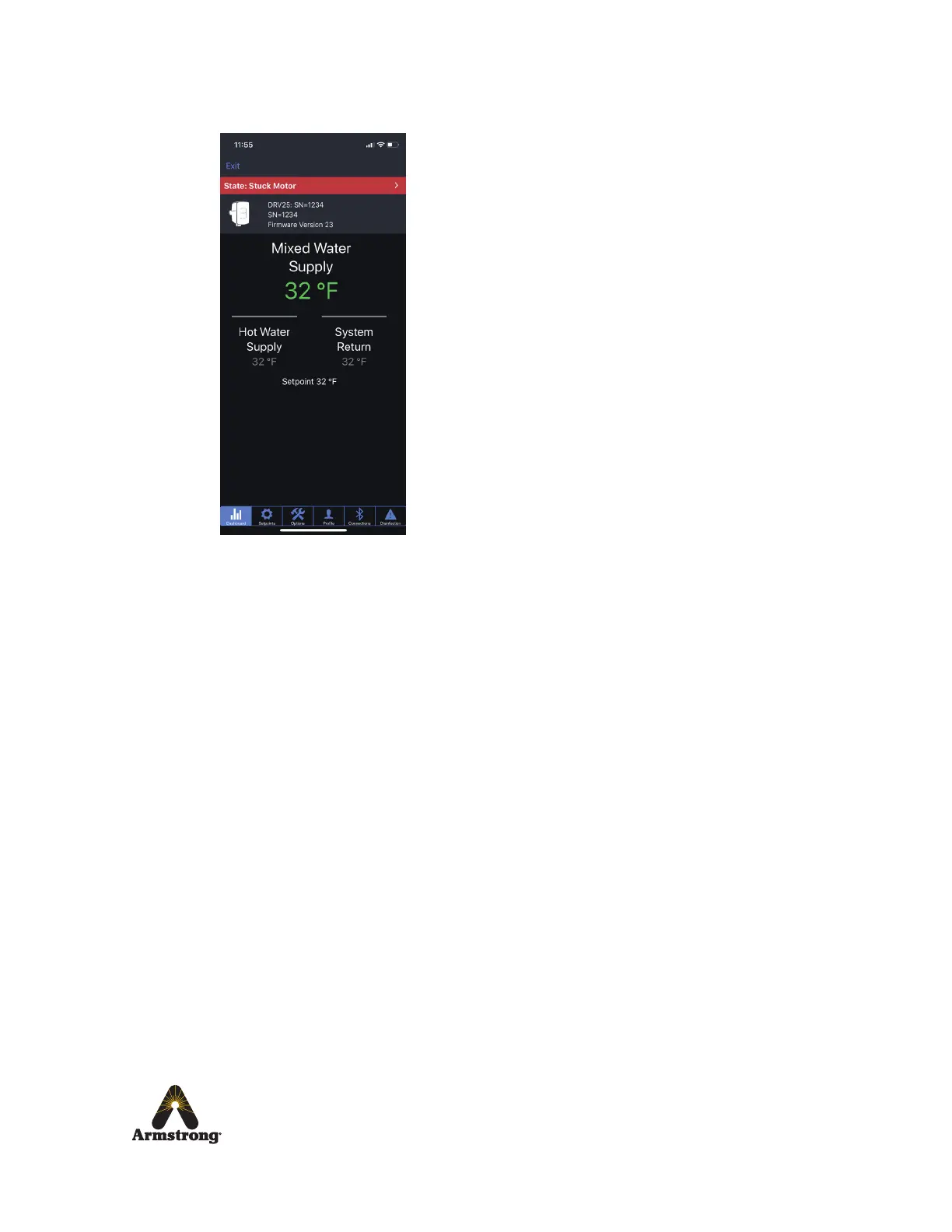

The following symptoms indicate motor / cable loom
failure or a malfunction of the positioning sensor. In the
rst instance, power cycle/reboot the DRV25. If the error
persists, check for the following:
• Internal PCBA connectors to DRV25 are
disconnected, damaged or possibly wet
• Dirt or debris around motor
• Motor is disconnected
• Opto encoder is not coupled to the motor
• Proportioning Assembly is sticking or has seized
• Motor is loose
• Drive belt is loose or dislodged
Replace in the following order if the problem still persists
after each:
1. P/N - D111636 Dual Opto Motor Loom
2. P/N - D111639 Drive Belt
3. P/N - D112643 Front Cover Assy with PCBA
4. P/N - D111638 Stepper Motor
5. P/N - D112645 Drive Mechanism Assy
see pages 33-39.
