Armstrong The Brain DRV25 User Manual

12
Armstrong International
221 Armstrong Blvd., Three Rivers, Michigan, 49093 - USA
armstronginternational.com/brain
Sink
Shower
Thermometer
Strainer
Cold Water
Hot Water
Mixed Water
Check Valve
Recirculation Pump
From Hot
Water Supply
Return to
Hot Water
Supply Inlet
Mixed Flow
Items are installer
supplied
Mixed Flow
Outlet
Outlet
DRV
H
C
Cold Water
Supply
System Layout
- Legend -
Isolation Valve
DRV25 Assembly
Swing Check Valve*
- Legend -
Thermometer
Isolation Valve
*Orientated for piping
schematic detail only.
Must be installed in
horizontal plane.
®
THE BRAIN
DRV25

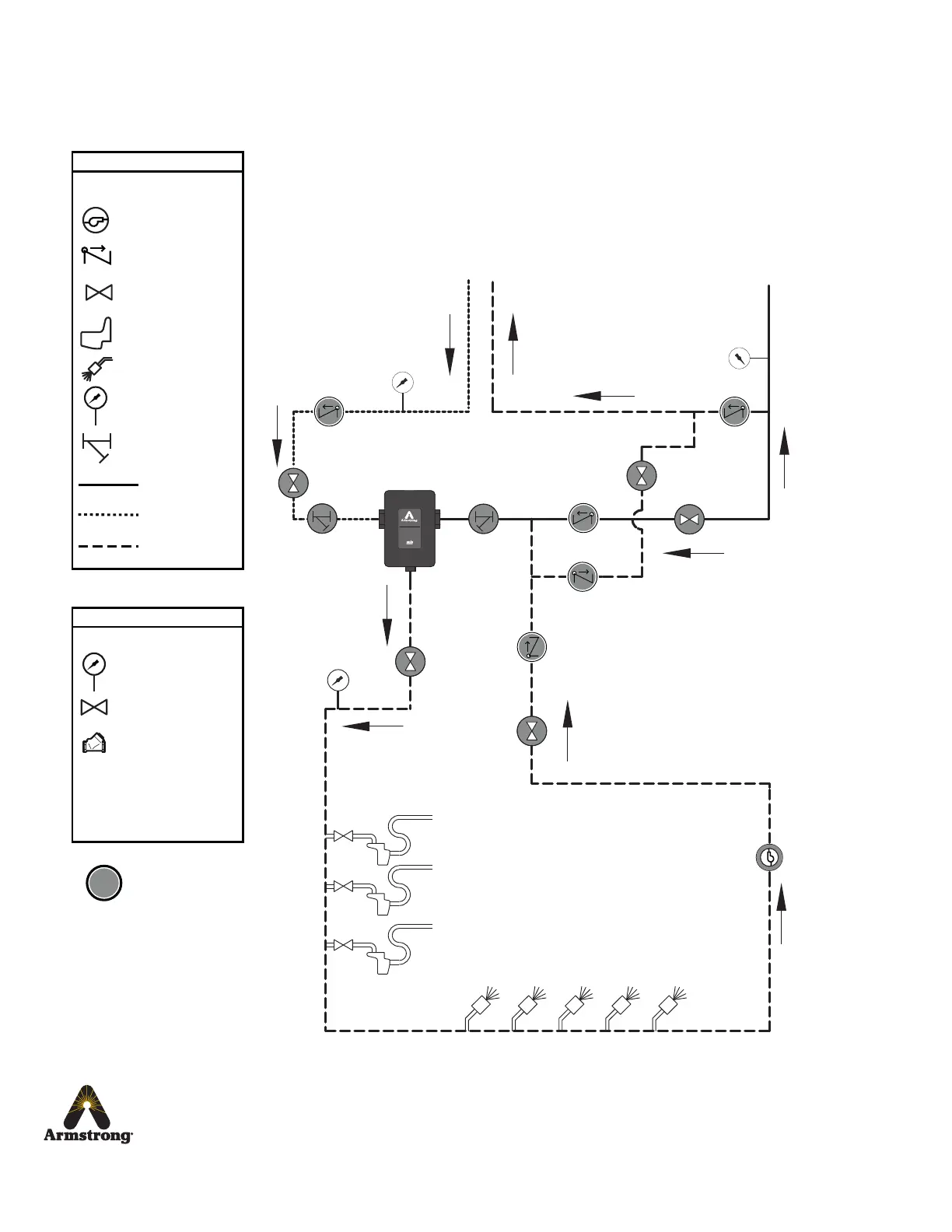

Figure 12-1. DRV25 Single Valve Installation
Note: DRV25 inlet connections are 1″.
Bon à savoir: La tubulure d’entrée du DRV25 est 1”.
Piping Diagrams
