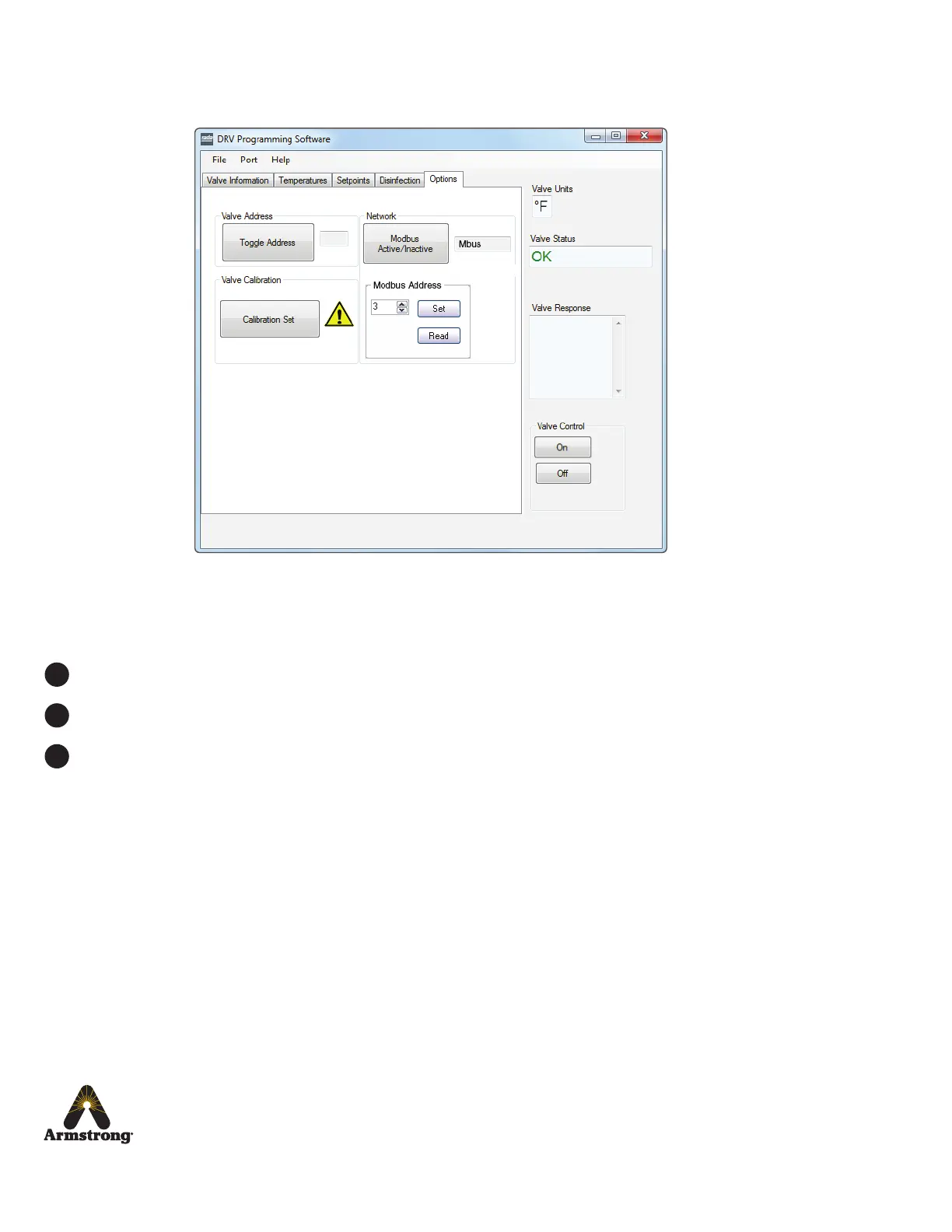

Options
Valve Address
The Address of the DRV80 as used by SAGE
®
BS can be set to Standard (Std) or Alternate (Alt). This allows
the use of two DRV80s on one serial line.
Set the  rst DRV80 to Std and the second DRV80 to Alt.
Network
Click the button to toggle to Bscan if the DRV80 is connected to SAGE
®
BS.
Click the button to toggle to Mbus if the DRV80 is connected to a Modbus network. The Modbus Address number
is determined by the con guration of the network. The number is between 3 and 32.
(If you are in any doubt contact the system administrator before adjusting this setting.)
1
2
3
Switch Valve Control to OFF.
Click Toggle Address .
Switch Valve Control back ON.
