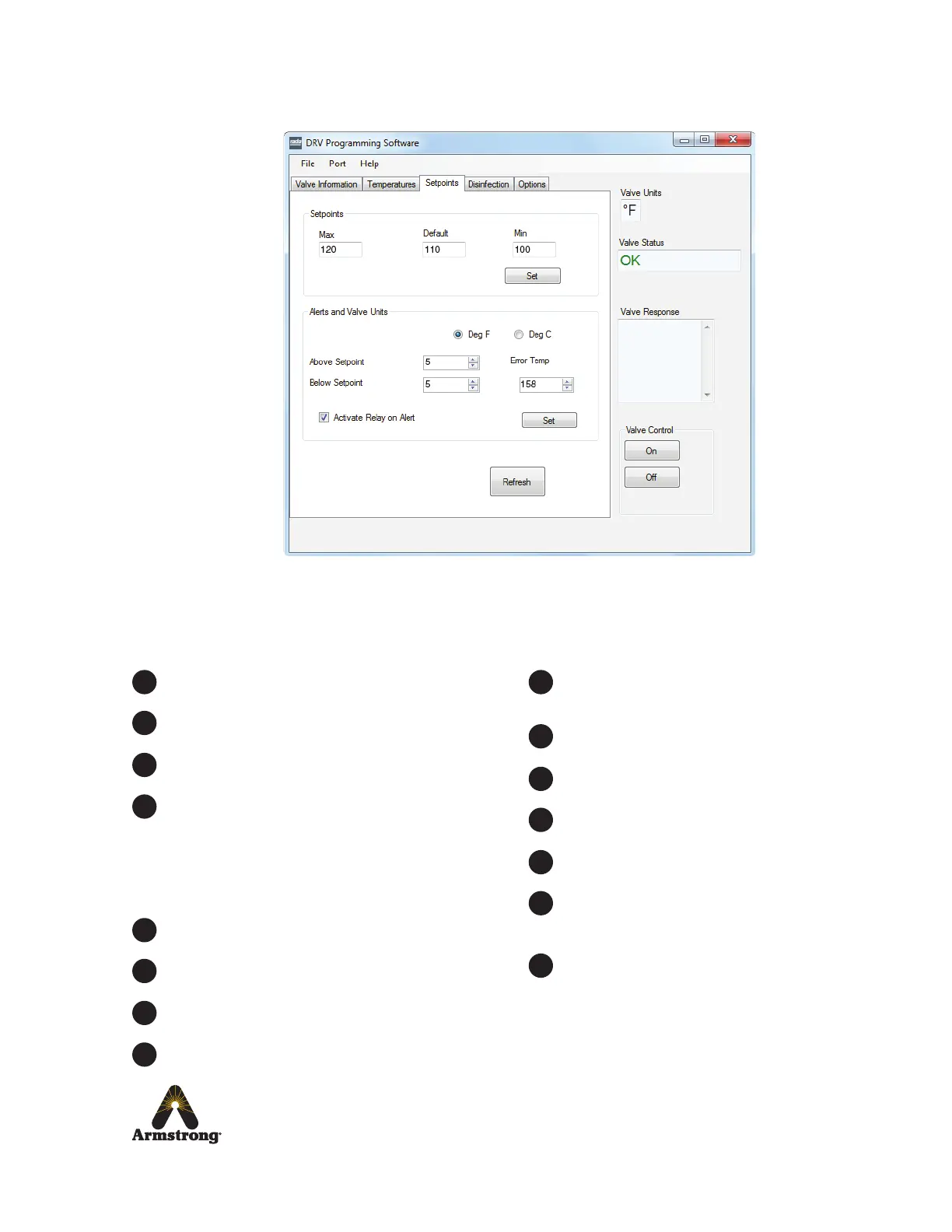

Setpoints
(Also see Setpoints - Explained)
Alter the Max, Min and Default values as required
for the application.
Switch Valve Control to OFF.
Click Set to transfer the values to the DRV80.
Switch Valve Control back ON.
The Setpoint Default value is displayed on the
DRV80.
Units
Click the preferred Valve Units (°F or °C).
Switch Valve Control to OFF.
Click Set to transfer the value to the DRV80.
Switch Valve Control back ON.
Alerts - optional
(Also see Alerts - Explained page 27 and Preset
Display Alerts page 29
5
6
7
1
2
3
4
Input the Above Setpoint and Below Setpoint
values.
Input the Error Temp value.
Click Activate Relay on Alerts if required.
Switch Valve Control to OFF.
Click Set to transfer the values to the DRV80.
Click Refresh to force display and con rm the
updated values.
Switch Valve Control back ON.

Armstrong The Brain DRV80R Specifications

General

Brand	Armstrong
Model	The Brain DRV80R
Category	Control Unit
Language	English
