3.2.1 Input line without neutral

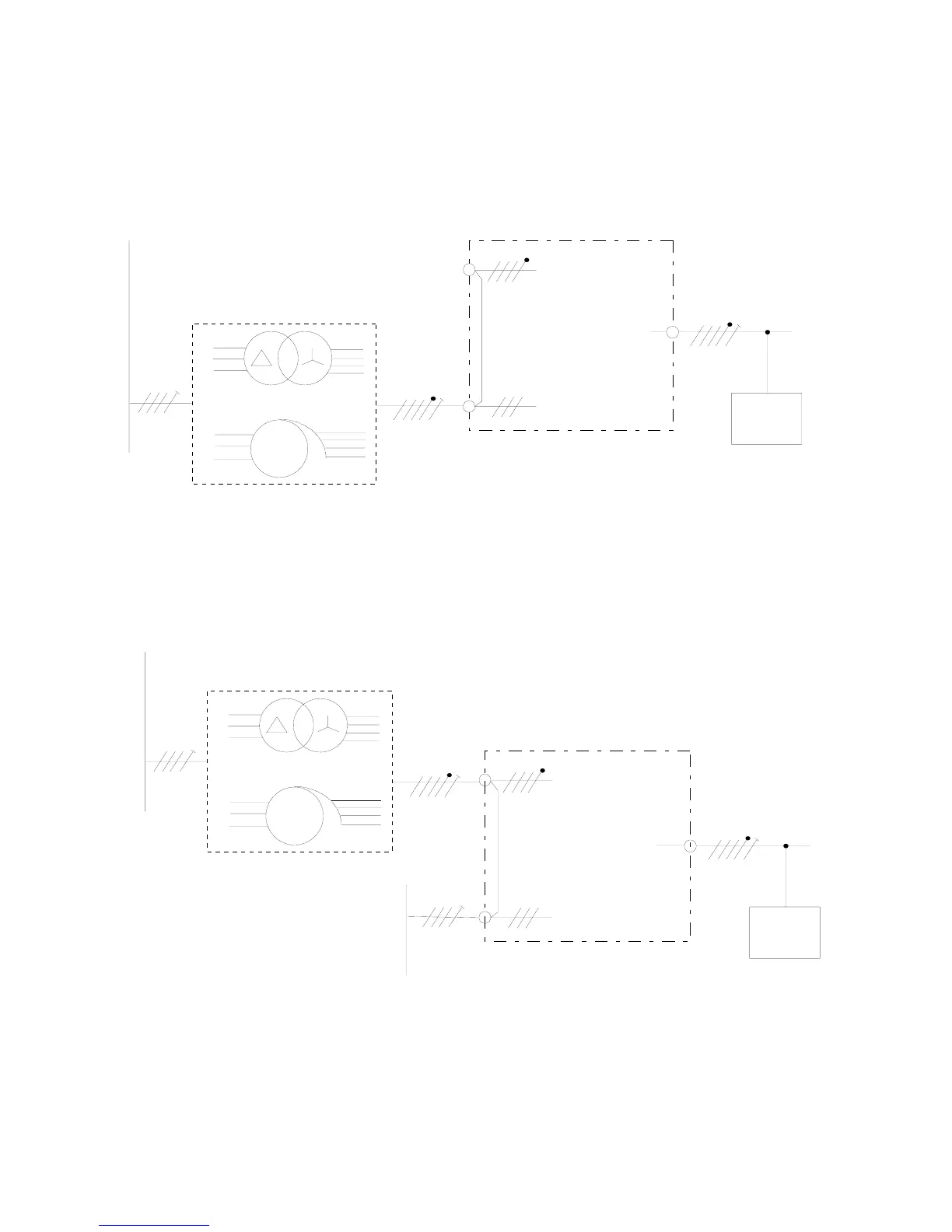

The transformer must be inserted either on the mains supply line or on the by-pass line (as shown in the drawings).
- Single power line without neutral
- main power supply and separate by-pass without neutral
MAINS LINE
UPS
LOAD
3Ph+N
or
OPTIONAL
MAINS LINE
UPS
LOAD
3Ph+N
BY-PASS LINE
or
OPTIONAL
