page 42 / 75 0MNA080A55-GB REV 01
-

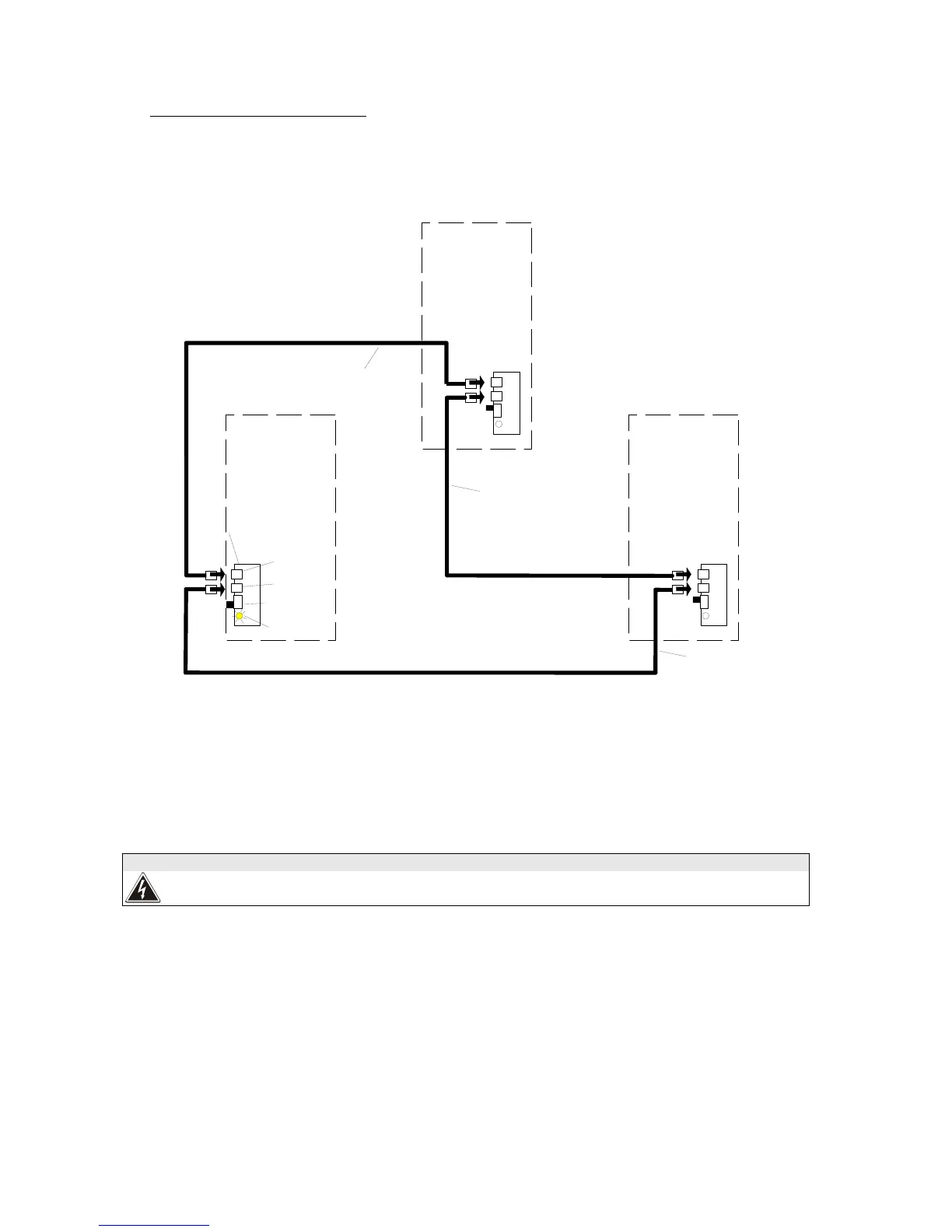

three SENTRY MPS-HP in paralell
D UPS1 LED on, UPS2 LED off, UPS3 LED off
E SW1 start position UPS1, SW1 cont position UPS2, UPS3
To add other parallel UPSs, a “UPS PARALLEL CABLE” must be added for each new UPS connected.
The signal connection must not be removed when one UPS is shut down
B
B
C
A
UPS 1
D
A
UPS 2
E
A
UPS 2
