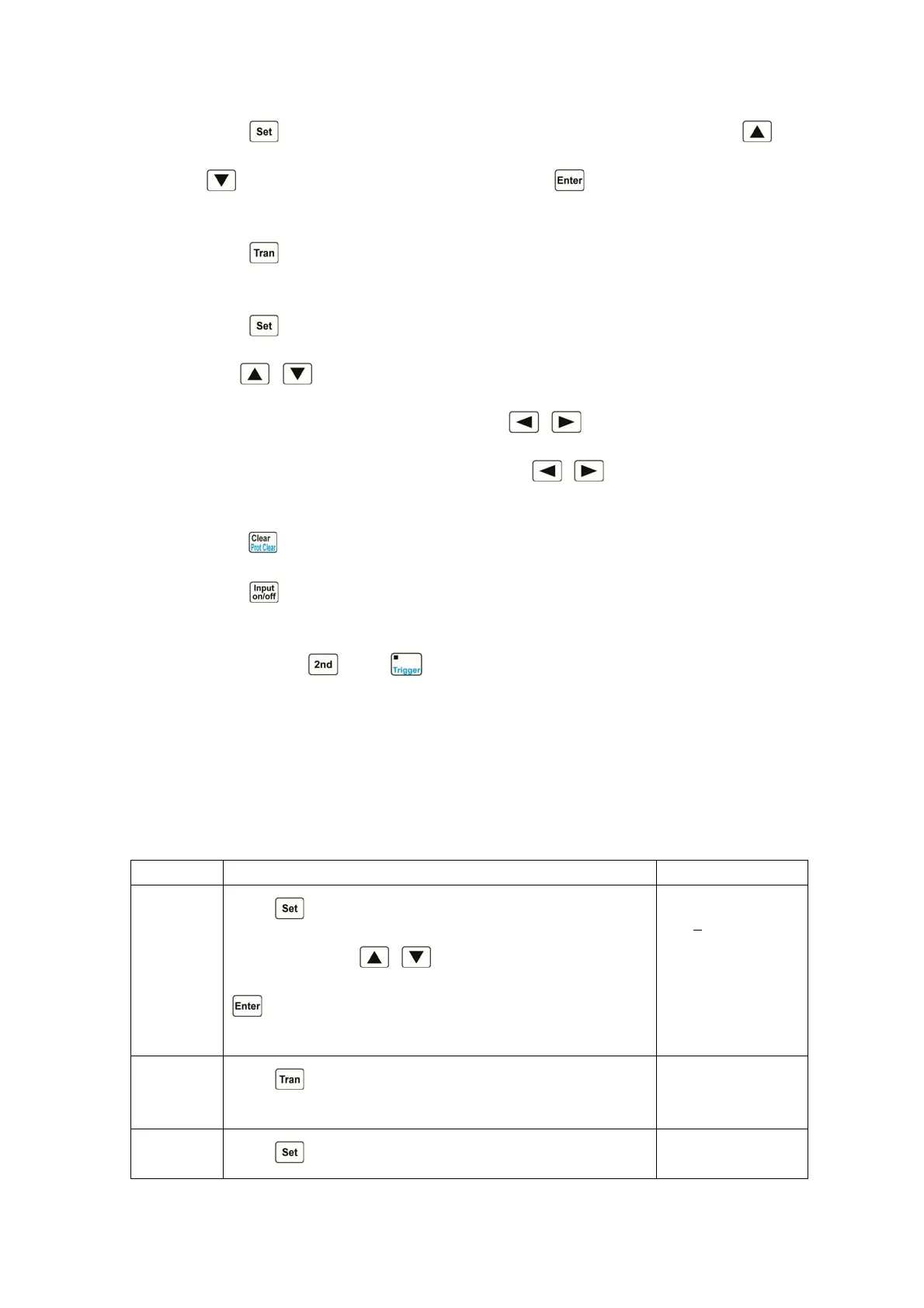

1. Press key to enter into the mode selection and parameter setting menu; use ,
keys to select one basic operating mode; press key to confirm and exit the mode
selection and parameter setting menu.
2. Press key to enter into transient operation. The display shows “t” to indicate in the
basic test mode.
3. Press key to enter into the transient operation menu.
4. Use , keys to select the parameter.
5.
Use Entry keys or use the knob together with , keys to set values for LevelL,
LevelH, TimeL, TimeH, TimeR, and TimeF. Use
, keys or knob to set Mode
value.
6. Press key to exit the transient operation menu.
7. Press key to turn on the load.
8. If it is the pulsed transient operation or the toggled transient operation, one trigger occurs
when pressing
key + key or the signal at the trigger input terminal (TRIG IN) is
low level.
4.7.1 Continuous Transient Operation
Example 1: Take 3721A as an example, set the load voltage value to periodically switch between
1V and 5V; set the time for rising edge (TimeR) to 10ms; set high level time (TimeH) to 200ms; set
time for falling edge (TimeF) to 20ms; set low level time (TimeL) to 400ms, and the load is in
continuous transient operation. The operating procedures are shown as below:
Procedures Operation Descriptions Display
1
Press
key to enter into the mode selection and parameter
setting menu; use
, keys to select CV mode; press
key to confirm and exit the mode selection and parameter
setting menu.
0.000V 0.000A
0.000
V CV OFF
2
Press
key to enter into transient operation. The display
shows “t” to indicate in CV mode.
0.000V 0.000A
80.000V
tCV OFF
3
Press
key to enter into the transient operation menu.
► LevelL:80.000V
LevelH:80.000V
