56
screen. Use Entry keys or the knob together with , keys
to input termination voltage to 15V. Press
key to confirm.

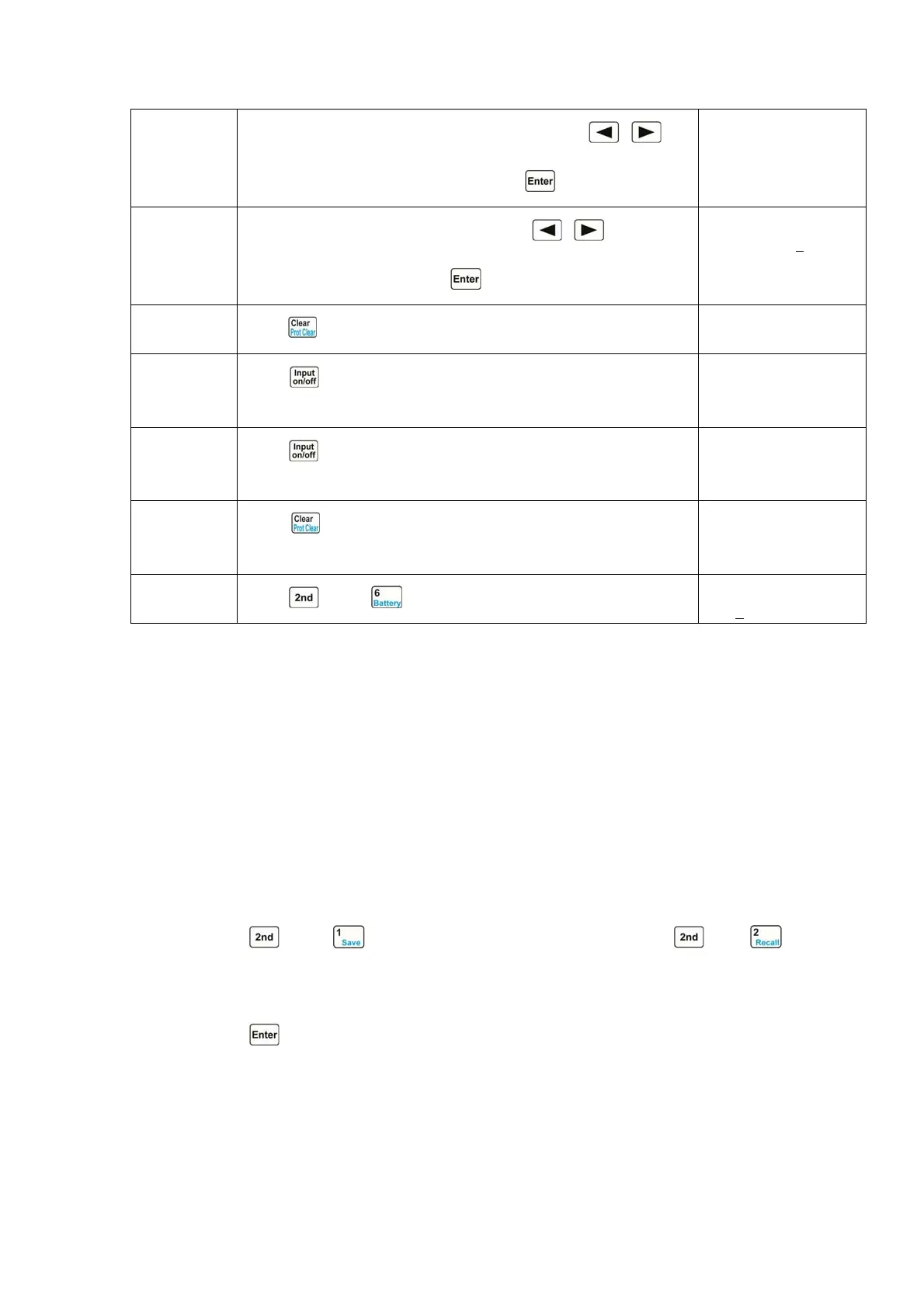

Step4
Use Entry keys or the knob together with
, keys to inpu
discharge current to 3A. Press key to confirm.
MinVolt:15.000V
►DisCurr:3.000A
Step5
Press
key to exit the battery discharge parameters edit screen.
20.000V 0.000A
0.000AH 00:00:00
Step6
Press
key to turn on the load, and start battery discharge
operation.
20.000V 3.000A
0.000AH 00:00:01
Step7
Press
key to turn off the load, and stop battery discharge
operation.
20.000V 0.000A
0.012AH 00:00:15
Step8
Press
key to clear the discharged time and discharged
capacity of the battery.
20.000V 0.000A
0.000AH 00:00:00
Step9
Press
key + key to exit the battery discharge operation.
20.000V 0.000A
0.000
A CCH OFF
For the above operating procedures, the corresponding SCPI commands should be:
INP OFF ；Turns off the load
BATT ON ；Activates the battery discharge operation screen
BATT:TERM:VOLT 15V ；Sets termination voltage to 15V
BATT:CURR 3A ；Sets discharge current to 3A
INP ON ；Turns on the load, and start battery discharge operation
INP OFF ；Turns off the load, and stop battery discharge operation
BATT OFF ；Exits the battery discharge operation
4.10 Saving and Recalling
The operating procedures for saving and recalling operation are shown below:
1.
Press key + key to enter into the saving menu, or press key + key
to enter into the recalling menu.
2. Press Entry keys or the knob to select saving or recalling position.
3. Press key to confirm and exit the saving or recalling menu. If the saving is selected,
the values of List 2-1 parameters will be saved in the specified location in EEPROM; if the
recalling is selected, the values of List 2-1 parameters should be the values saved in
specified location in EEPROM.
Example 1: Set the mode to CCL; set the current value to 2A; turn on the load; save the settings
in Location 0 in EEPROM; the next time the load is turned on, these settings will become the
To Next Page
