Motor layout 13

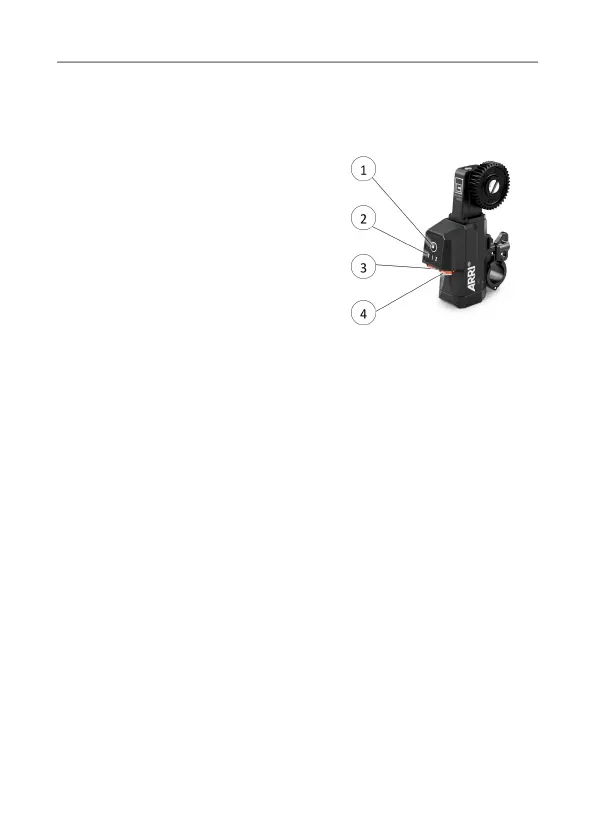

5 Motor layout
1 Setup button
2 Focus, Iris, Zoom indicator
3 LBUS connector 1
4 LBUS connector 2
5.1 Setup button
Motor assignment
Use the SETUP button to assign the cforce mini motor to the focus, iris or
zoom control of the respective control device. Make sure that the assignment
matches the lens scale the motor is attached to.
Press the SETUP button momentarily to indicate the current motor
assignment. The F (Focus), I (Iris) or Z (Zoom) indicator underneath the
SETUP button will light up for three seconds.
Press the SETUP button momentarily again to change the current motor
assignment. Toggle through until you reach the desired setting.
Motor calibration
Press the SETUP button for three seconds to start the automatic calibration
of the respective motor.
Press the SETUP button momentarily during calibration to interrupt the
calibration process.
