Connecting Your DCX Set-top
High-Definition All-Digital Dual Tuner DVR Set-top DCX3510-M • User Guide 11
365-095-25384-x.1

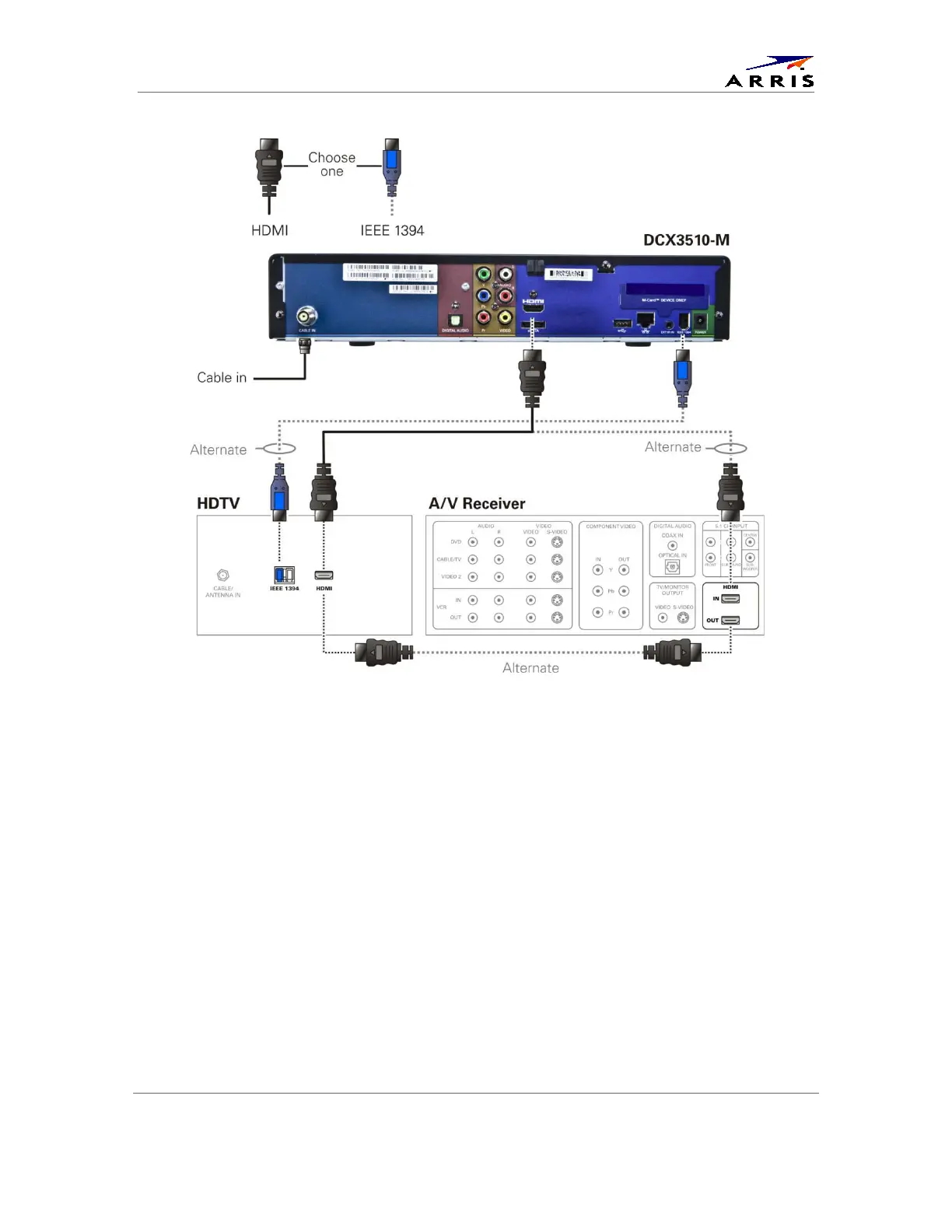

Figure 3: Connecting an HDTV — Single Connection for Video/Audio
Note: Only one HDTV video connection needs to be made to an HDTV.
Note: On-screen graphics will not be displayed when using IEEE-1394 connection. Refer to On-
Screen Graphics for more information.
Note: Solid lines indicate optimum connections.
Note: Optional HDMI connection to A/V Receiver shown but not required.
