Connecting Your DCX Set-top
High-Definition All-Digital Dual Tuner DVR Set-top DCX3510-M • User Guide 15
365-095-25384-x.1

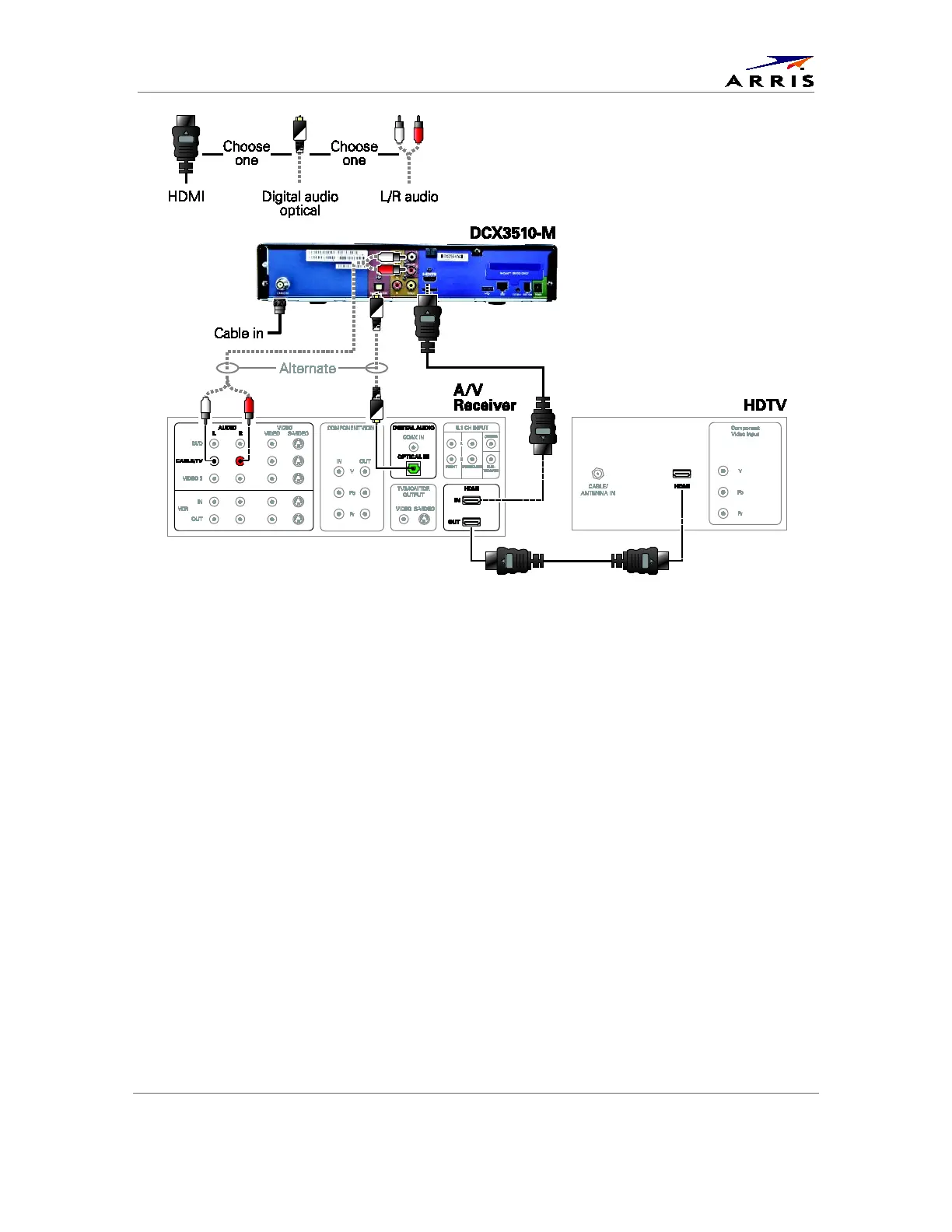

Figure 5: Connecting an A/V Receiver — Audio
Note: Only one audio connection needs to be made to an HDTV.
Note: Solid lines indicate optimum connections.
