Connecting Your DCX Set-top
High-Definition All-Digital Dual Tuner DVR Set-top DCX3510-M • User Guide 13
365-095-25384-x.1

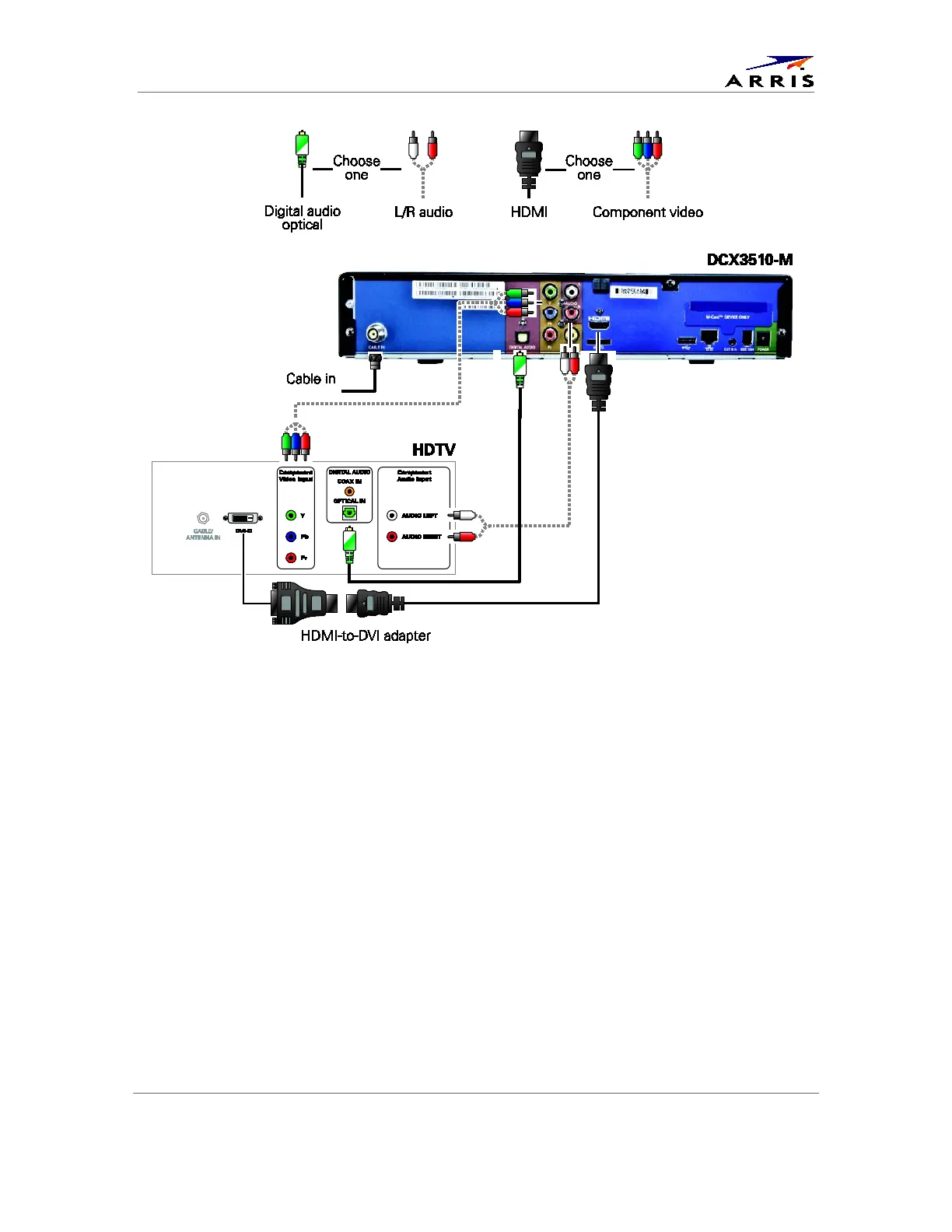

Figure 4: Connecting an HDTV — Separate Video/Audio Connections
Note: Only one video connection and one audio connection need to be made to an HDTV.
Note: HDMI-to-DVI adapter is not included with the set-top.
Note: Solid lines indicate optimum connections.
To Next Page
