Arris DCX3510 - Figure 8: Connecting an A;V Receiver, SDTV, and VCR;DVD Recorder

Connecting Your DCX Set-top
High-Definition All-Digital Dual Tuner DVR Set-top DCX3510-M • User Guide 20
365-095-25384-x.1

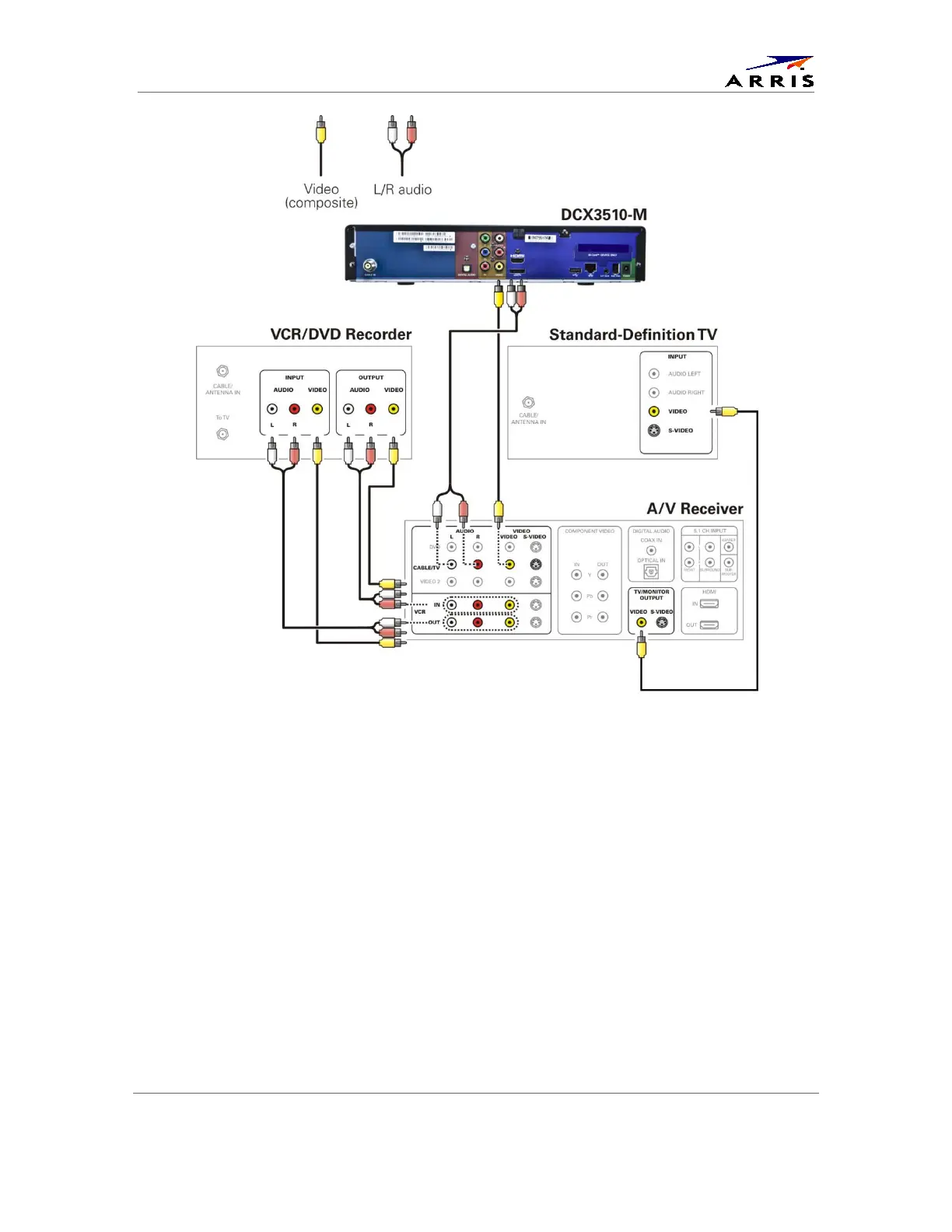

Figure 8: Connecting an A/V Receiver, SDTV, and VCR/DVD Recorder
Note: Solid lines indicate optimum connections.
Note: Consult your A/V receiver manual for additional wiring options or constraints when including
a VCR/DVD Recorder in your configuration.
