Connecting Your DCX Set-top
High-Definition All-Digital Dual Tuner DVR Set-top DCX3510-M • User Guide 16
365-095-25384-x.1
Connecting an SDTV
1. Connect the stereo audio cable to the AUDIO OUT L/R connectors on the DCX set-top and
the audio L/R connectors on the Standard-Definition TV (SDTV).
2. Connect a Video Composite cable to the Video Composite connector on the DCX set-top
and the input Video Composite on the TV.
These video connection methods do not support HD video. If you have an HDTV, see Connecting an
HDTV — Single Connection for Video/Audio.

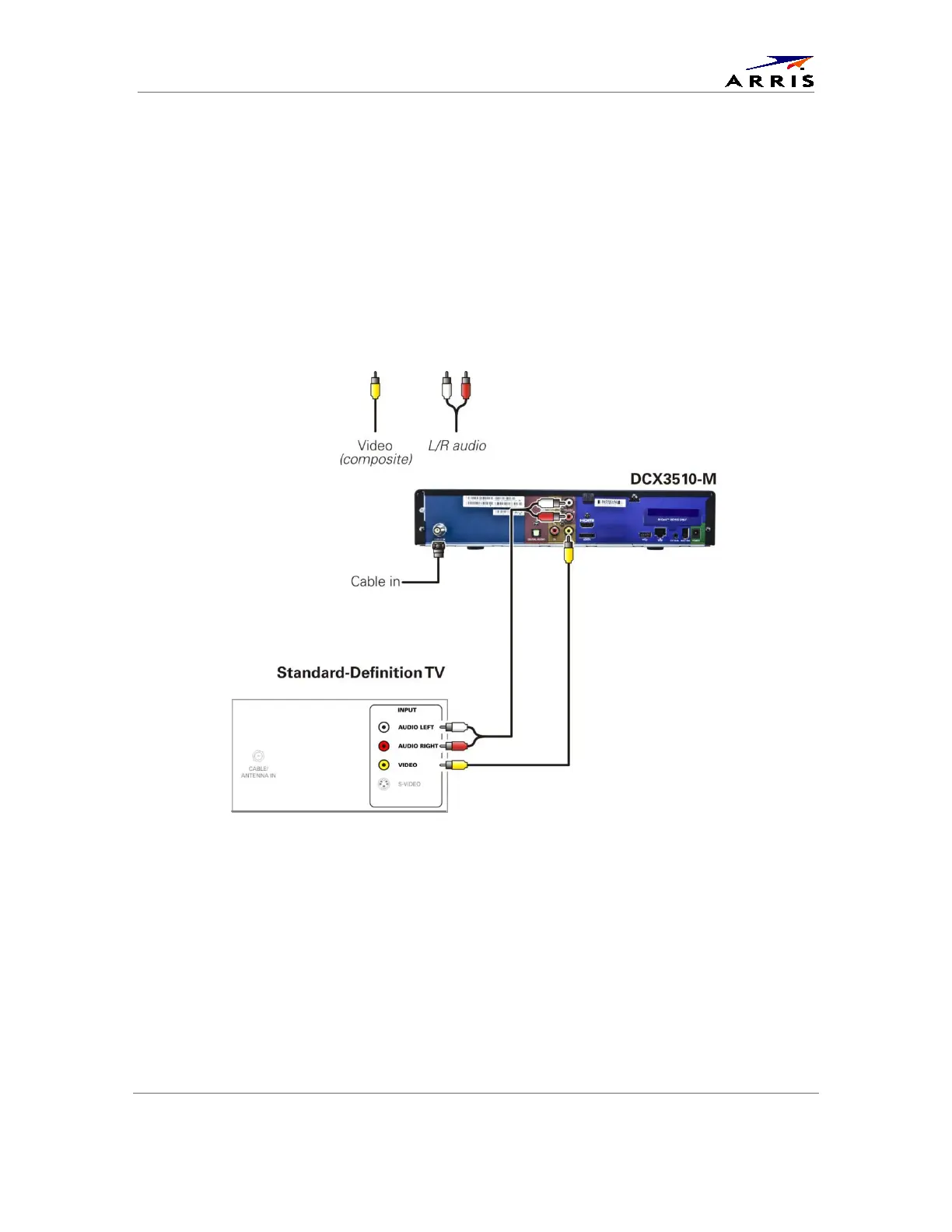

Figure 6: Connecting an SDTV
Note: Composite video requires separate audio connections.
Note: Only one video connection and one audio connection is required.
Note: Solid lines indicate optimum connections.
