Touchstone TG852 Telephony Gateway User’s Guide
Front Panel

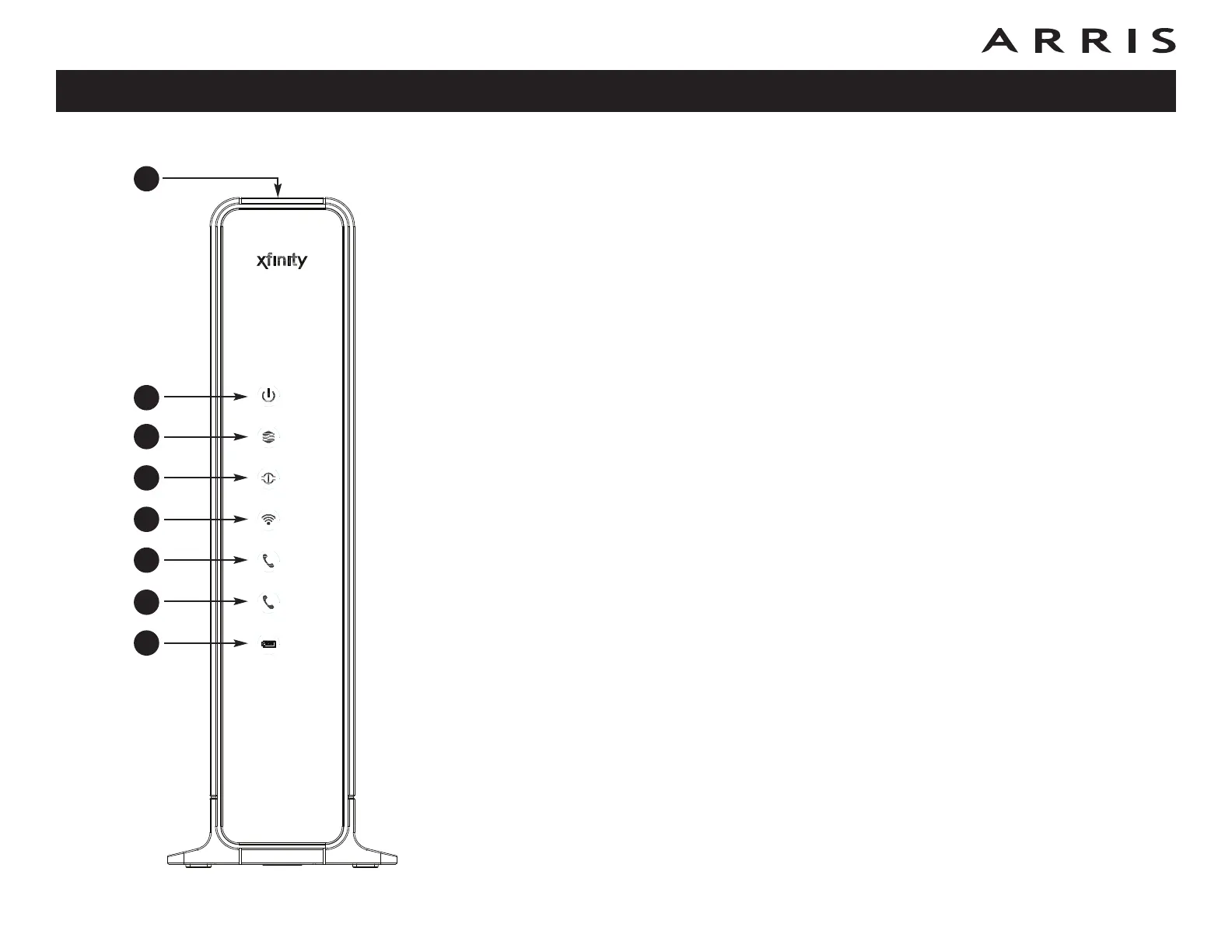

The front of the Telephony Gateway has the following indicators:
A WPS button with indicator light: indicates Wireless Protected Setup (WPS)
is active. (Button with light ring is located on top of unit.)
B Power: indicates whether AC power is available to the unit.
C US/DS: indicates upstream and downstream connectivity.
D Online: indicates internet data transmission status.
E WiFi: indicates the status of the wireless LAN.
F Tel 1: indicates the status of telephone line 1.
G Tel 2: indicates the status of telephone line 2.
H Battery: indicates the battery status.
