Using the Reset Button
Use the Reset button, on the back of the Telephony Modem, to reset the modem
as if you power cycled the unit. You may need to reset the Telephony Modem if you
are having problems connecting to the Internet. Using this button will be rare.

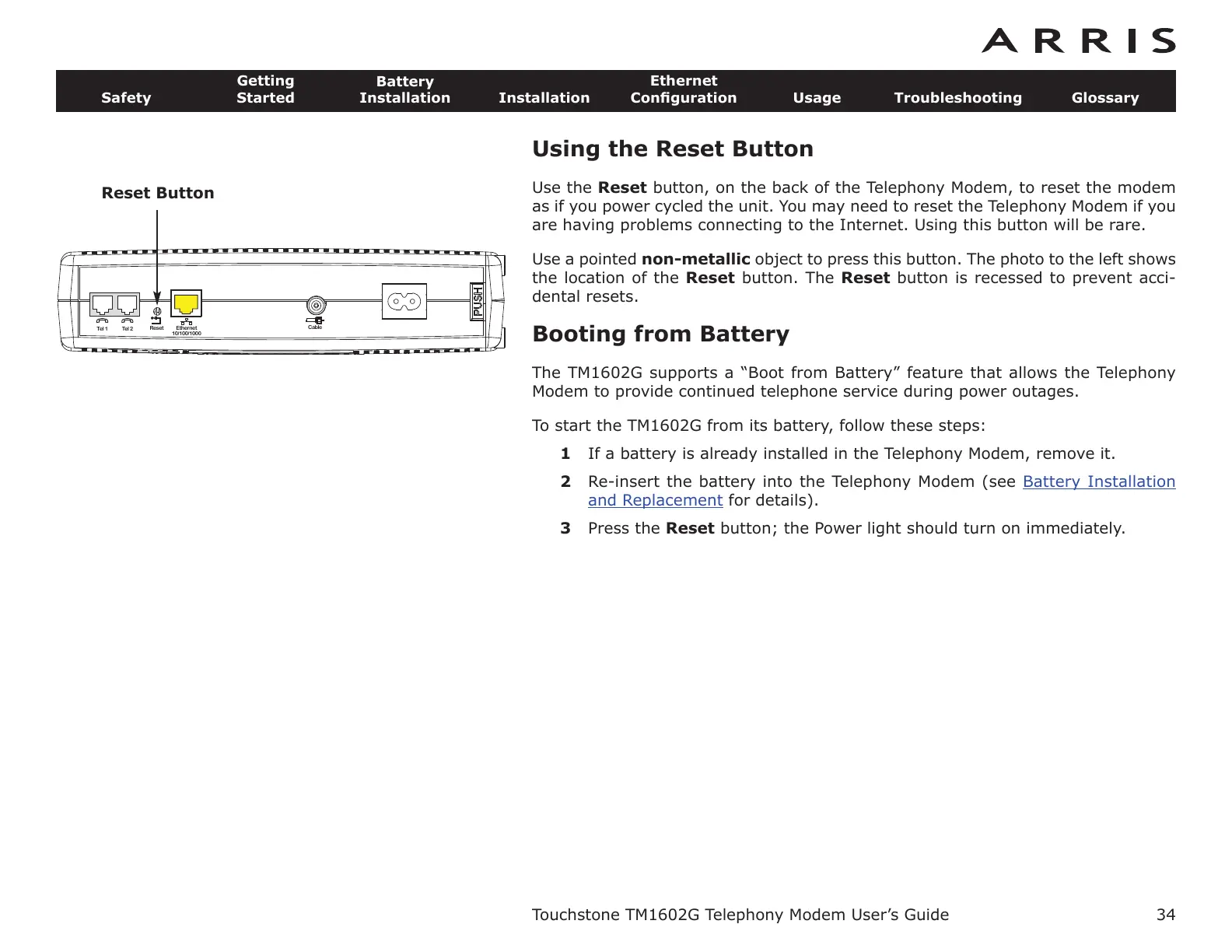

Use a pointed non-metallic object to press this button. The photo to the left shows
the location of the Reset button. The Reset button is recessed to prevent acci-
dental resets.
Booting from Battery
The TM1602G supports a “Boot from Battery” feature that allows the Telephony
Modem to provide continued telephone service during power outages.
To start the TM1602G from its battery, follow these steps:
1 If a battery is already installed in the Telephony Modem, remove it.
2 Re-insert the battery into the Telephony Modem (see
Battery Installation
and Replacement for details).
3 Press the Reset button; the Power light should turn on immediately.
