Chapter 5: Installing and Connecting your Telephony Modem
Release 32 STANDARD 1.2 August 2016 Touchstone TM3202G Telephony Modem User Guide
© 2015-2016 ARRIS Enterprises LLC. All Rights Reserved. 26

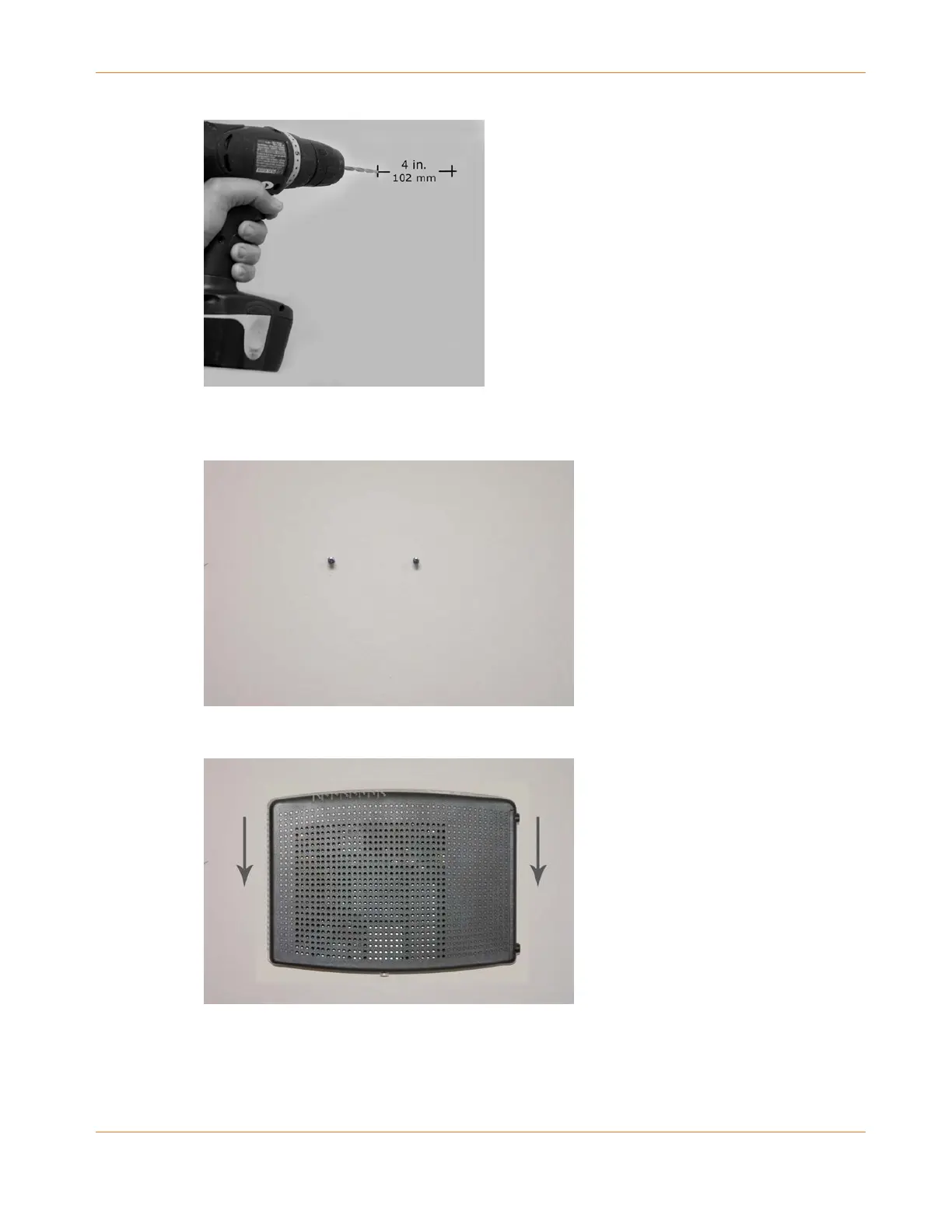

2. Drill holes, 4" (102 mm) apart, in the correct locations for the mounting screws.
3. If using drywall anchors, set them into the wall. Then, drive the screws into the wall
leaving a gap of about 1/8” (3 mm) between the screw head and the wall. If not using
anchors, just drive the screws.
4. Slip both mounting slots in the back of the Telephony Modem over the screws, then slide
the case down until the narrow end of the keyhole slot contacts the screw shaft.
5. Proceed to Connecting the Telephony Modem (page 27).
