Artesian Spas Garden Spas - Figure 1. Terminal Connections for 240 V and 120 V Service

21
service must be readily accessible to the spa occupants, but must not be within 5
feet of the spa.
4. Use only non-metallic conduit and fittings when installing power to the spa.
5. After the spa has been positioned, route lines through the knockout on the left or
right front corner of the spa.
6. Connect the power to the spa  Connect each color to its respective terminal
block location. The Ground (green) wire must be connected to the grounding
terminal 60 Hz, South Seas Spas™ Terminal Options
Refer to wiring diagram in the enclosure box lid for more information .

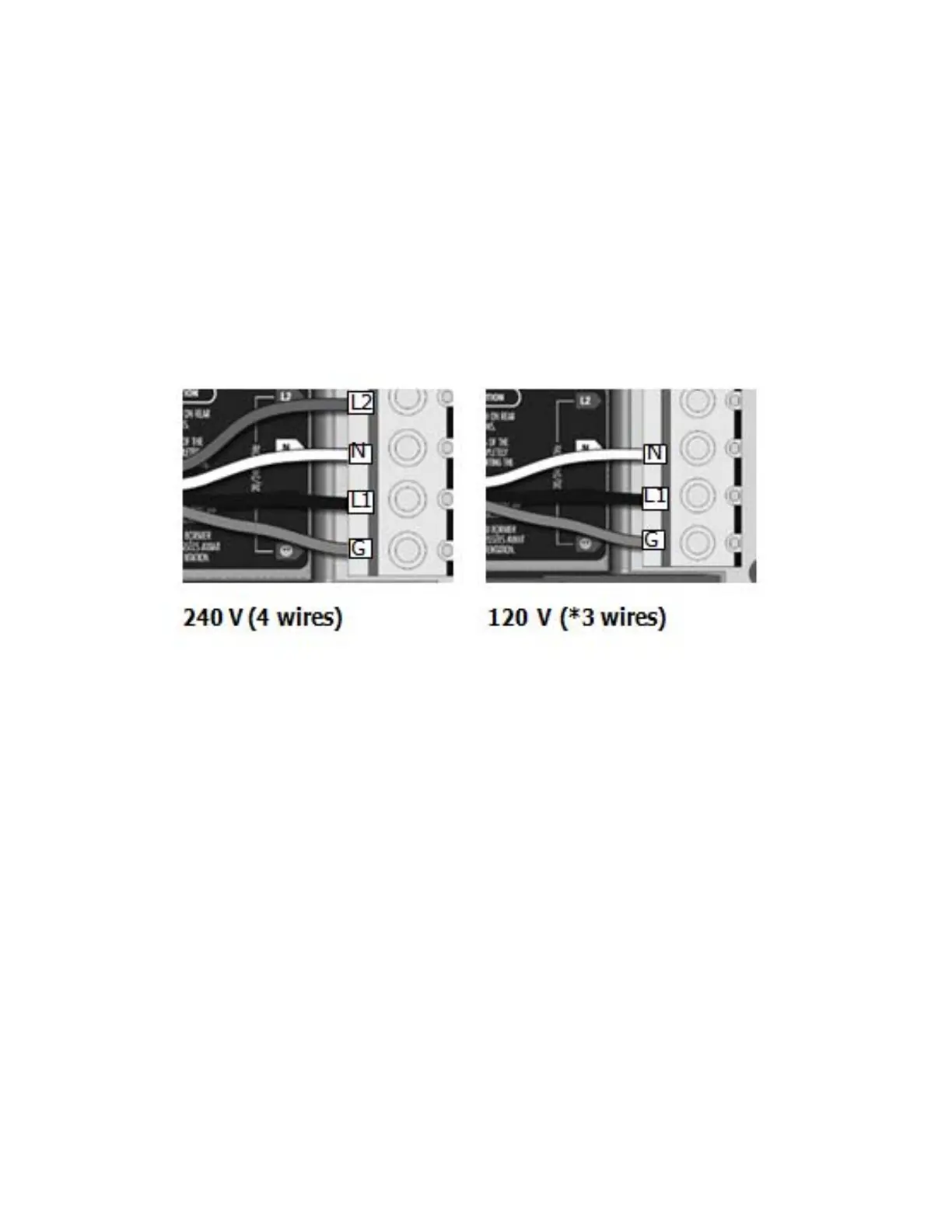

Figure 1. Terminal Connections for 240 V and 120 V Service
Insert each wire into the appropriate socket of the main entry terminal block
according to the color code indicated on the sticker . Use a flat-head screwdriver to
tighten the screws on the terminal .
After making sure wires are securely connected, push them back into the box and
replace the cover � Do not over tighten cover screws .
