26

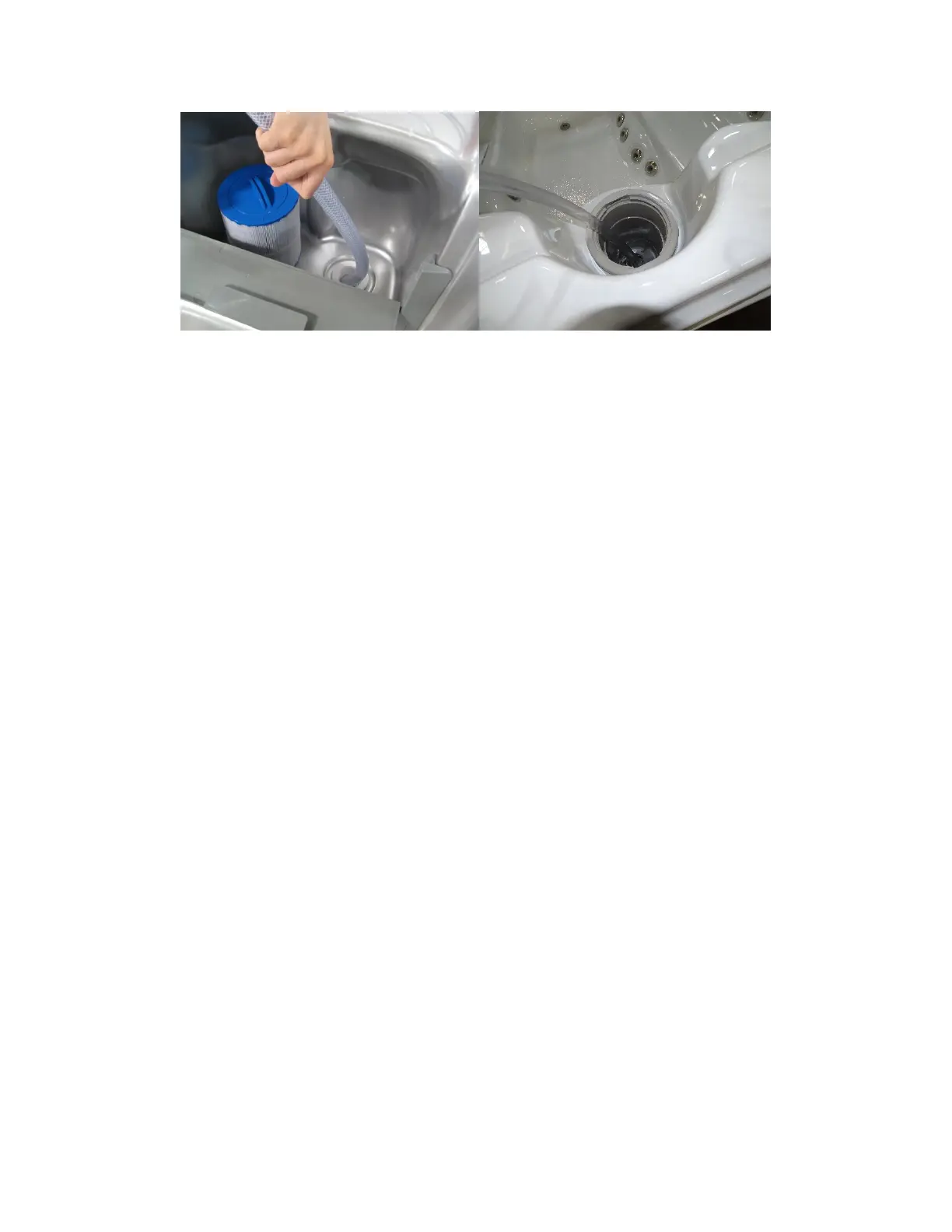

Figure 3. Filling Location in Filter Housing
4. Fill the spa to the bottom of the pillows to cover jets. DO NOT overfill the spa.
The water level will rise when occupants are inside.
5. With the front panel off, verify there are no leaks at the pump unions. Pump
unions can become loose during shipping. Verify that there are no leaks
during filling of the spa.
6. Replace both filters.
Powering the Spa On
Turn the power to the spa on at the main circuit breaker. Verify that the spa has no
warnings or error messages on the panel display. To verify the circulation system is in
good working order, perform the following steps:
1. Open all jets to maximum flow position.
2. Press the Jet 1, 2 and 3 buttons to turn the individual pumps on or off.
3. Observe and verify good water flow exists in the jets of each seat.
Upon initial start, one pump will initially come on for 5 minutes and then cycle through
each pump sequentially for a one minute duration.
