ARTEX ME406 - Figure 28 Electrical Components

ARTEX PRODUCTS / ACR ELECTRONICS, INC
DESCRIPTION, OPERATION, INSTALLATION AND MAINTENANCE MANUAL
ME406 (453-6603), ME406HM (453-6604)
Page 71 of 72
Mar 19/15
25-62-30

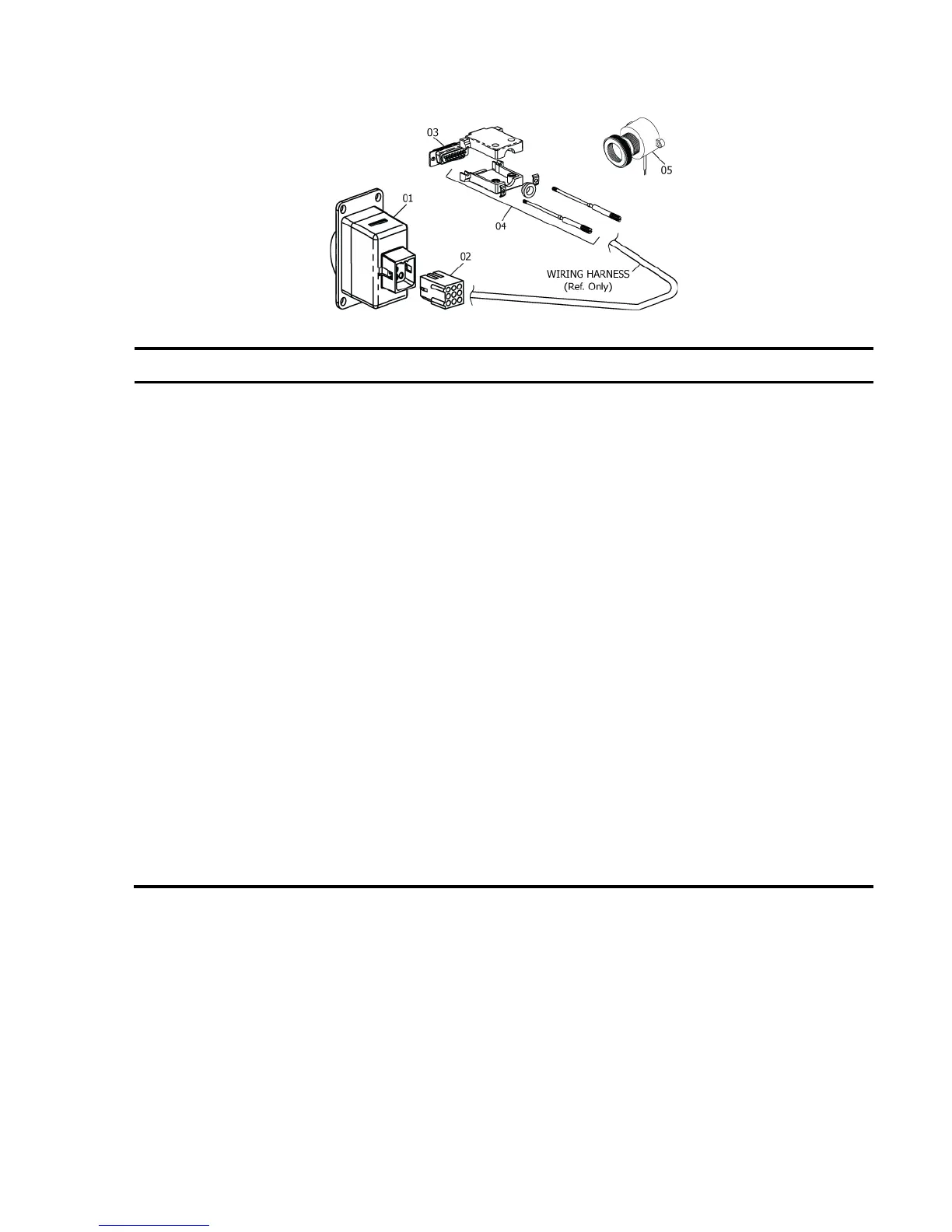

Figure 28 Electrical Components
FIG # ITEM PART # 1234 NOMENCLATURE UPA
28 01 345-6196-04 Switch, Cockpit Remote 1
ATTACHING PARTS
– 201-0408 Screw, PHIL 4-40 x 1/4” SS 4
– 247-0400 Washer, Internal Lock SS #4 4
– 241-0440 Nut, 4-40 x 1/4” Hex SS 4
***
– 591-0428 . Label, ELT Cautionary Use Advisory 1
***
02 151-5009 Plug, 9-Pin 1
***
– 151-6628 . Terminal, Crimp Female 0.062 Dia. 9
***
03 150-1130 Connector, D-Sub, 15-Pin, Female, Solder Contacts 1
04 150-1127 Housing, D-Sub, 15-Pin, Grommet., Thumbscrews 1
***
– 850-0814 . Sealant Strip, D-Sub Connector 2
***
05 452-6505 Buzzer (ELT Audible Alert) 1
