Universal DrillSaw Battery Charger User’s Guide
DFU-0256-1 Rev. 0 Page 18 of 35
4.3 Setup - Installing a charging bay
These instructions describe how to install charging bay(s)

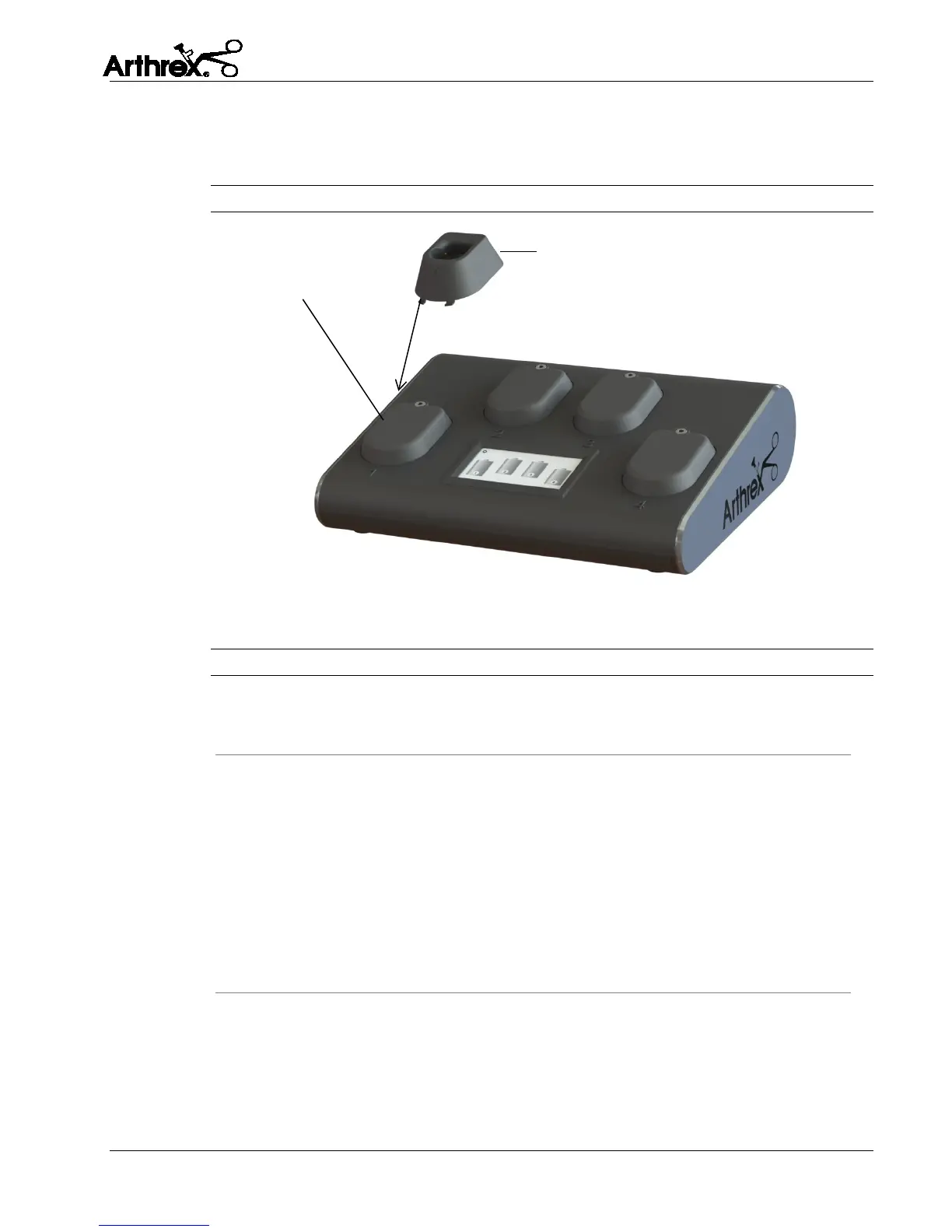

Figure 5 Install a charging bay
Table 10 Install a charging bay
With the power off, using the hex-wrench provided on the bottom
of the charger, remove the securement screw and the protective
bay cap used during shipping.
Hold the charging bay at a slight angle and insert the 2 alignment
tabs on the charging bay with the two openings on the charging
port that is exposed when you removed the protective cap.
Once the tabs are aligned in the provided holes, press down
gently to engage the electronic plug connection.
Using the hex-wrench secure the charging bay to the charger (turn
the screw until it is firmly in place, being careful not to strip the
screw threads). Batteries are now ready to be placed on the
1
2
