Universal DrillSaw Battery Charger User’s Guide
DFU-0256-1 Rev. 0 Page 21 of 35
5
5
.
.
0
0 Operation and frequently used functions
Users of this device should contact their Arthrex representative if they require more
comprehensive assistance.
5.1 Main Screen
NOTE: If the light doesn’t appear within 5 seconds, the charger did not identify the battery.
Remove the battery and replace it on the charger. If this does not correct the issue, contact
Arthrex Customer Support for instructions.

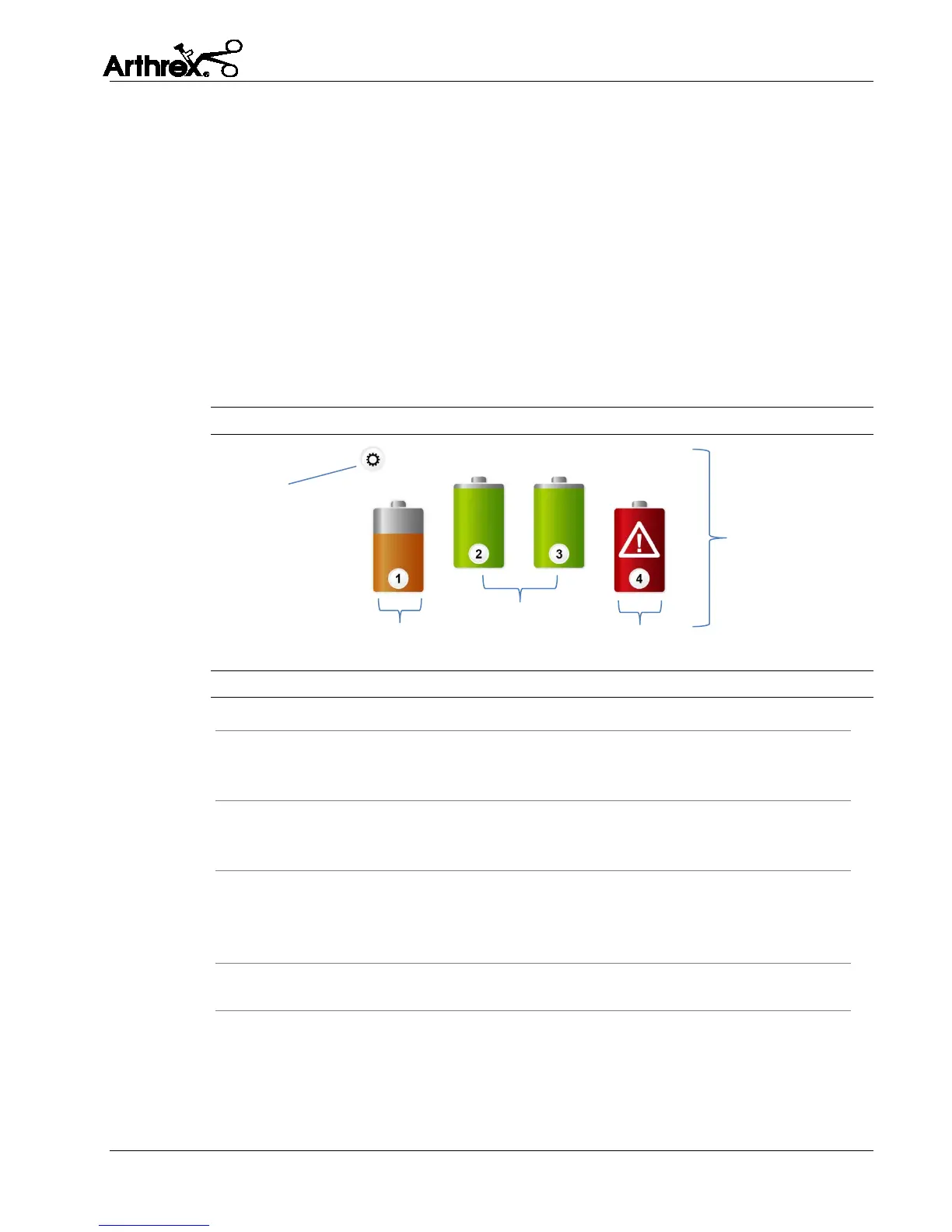

Figure 7 Main Screen Display
Table 12 Touch Screen Display Elements
1.
Example of the screen layout
2.
Example of the orange light that will appear while the battery is
charging. If you press this icon while it is orange, it will give you
additional information about the battery (only for AR-400UB).
3.
Example of the green light that will appear when charging is
compelte. If you press this icon while it is green, it will give you
additional information about the battery (only for AR-400UB).
4.
Example of the red light and symbol that will appear when an
error has occurred. Press the red icon for the sub-screen that will
give you the error code. Refer to Table 3 in Section 2.4.3 for
instructions on how to correct the error.
5.
MENU Button –This button allows access to various settings and
defaults. See Figure 8 in Section 5.2.
1
5
3
2
4
