Artillery Genius Pro - Printer Assembly Guide; Step 1: Align XZ Gantry; Step 2: Secure XZ Gantry

- 8 -
STEP 2
STEP 1
ASSEMBLY

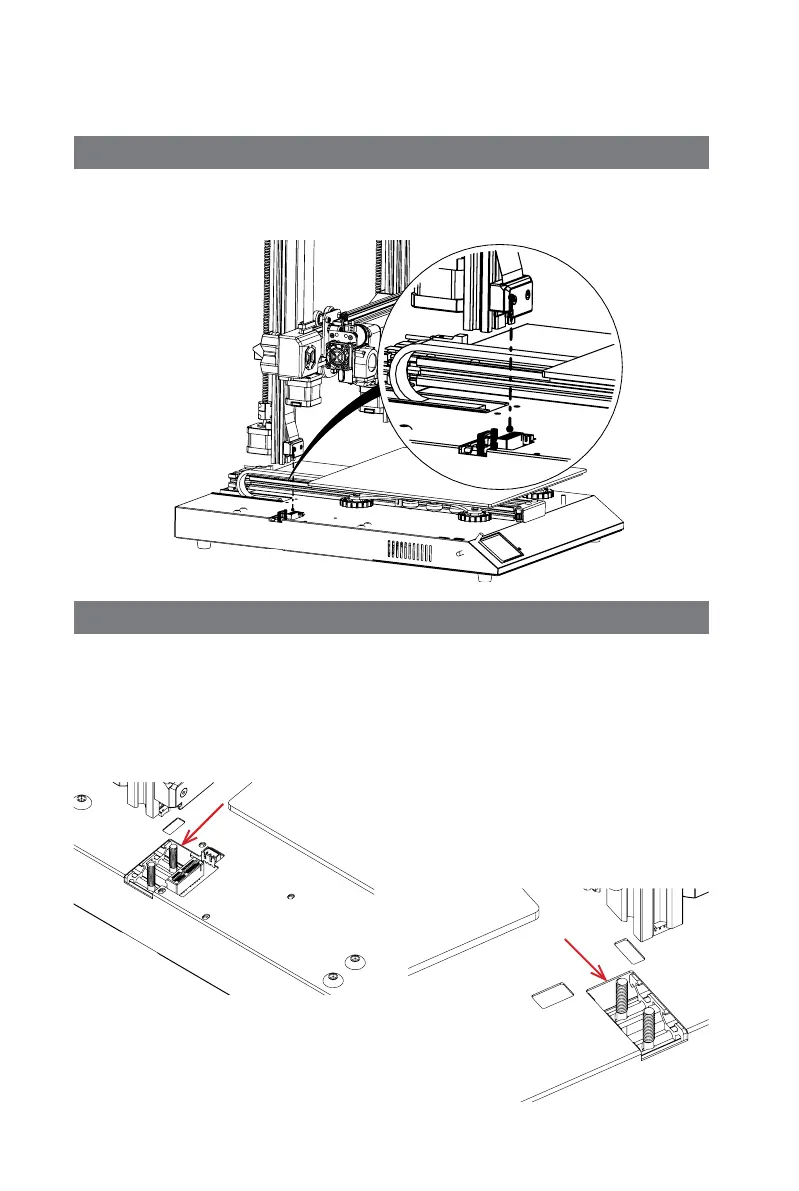

Align the XZ gantry to the base, make sure the connector is perfectly
aligned to the female connector on the base.
The M5 screws used to fasten the XZ gantry to the base are pre-inserted
into the extrusion, use the Allen key provided to tighten the screws.
Push the aluminum extrusions against the inside of the slot when tight-
ening the screws.
