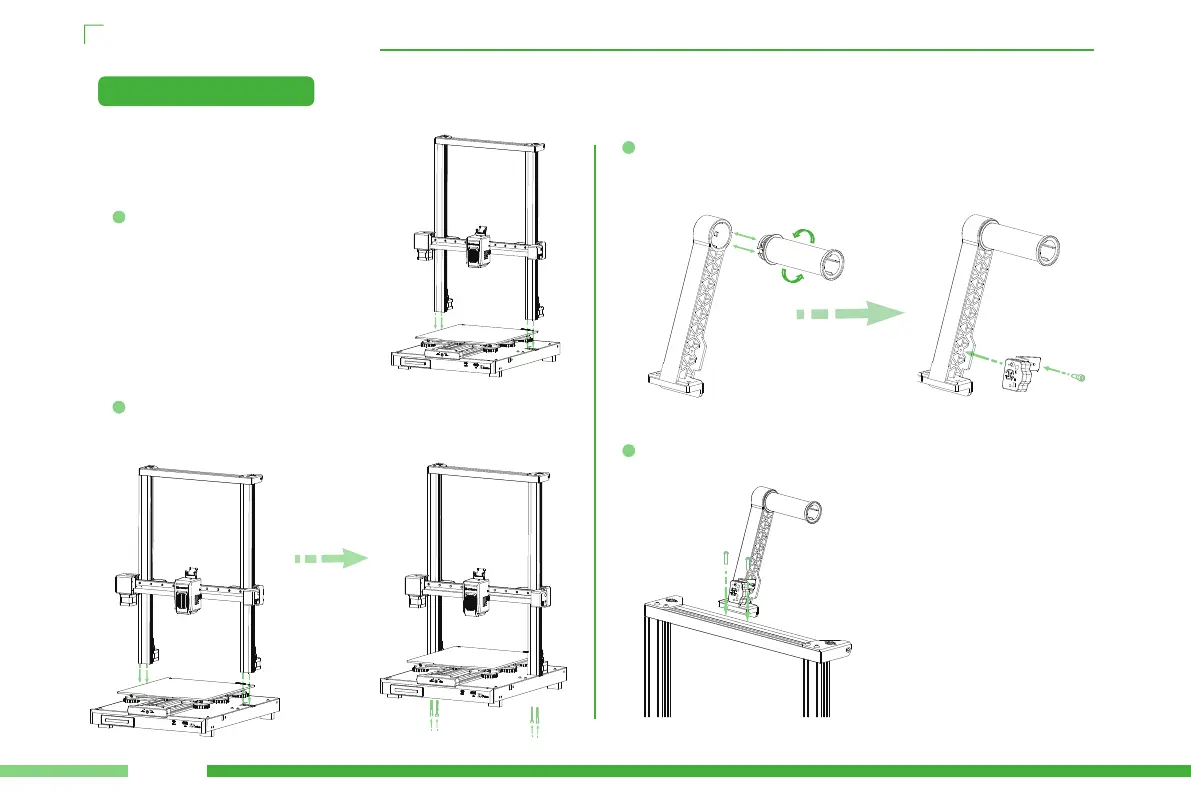

Inse the gant into the slot on the
base. Ensure that the gant direction
matches the bottom slot direction.
1
Assemble the material rack assembly as shown in the following gure:
Thread the material pipe through the material rack and tighten it, and
then install the broken material detector assembly on the right side of
the material rack with one φ 4 x3xM3 screw (screw bags②) .
2. Unboxing Operation
2.1 Product Installation
04
2
Use four M5*40 screws (screw bags ①) to lock the gant on the base.
When locking the screws, make sure to keep the prole close to the
inside and then lock it to prevent the appearance of external eight
characters.
3
Install the rack assembly to the top cross member using two M4*18
screws (screw bags ③) .
4
M5*40
M5*40
φ4x3xM3
M4*18
To Next Page
