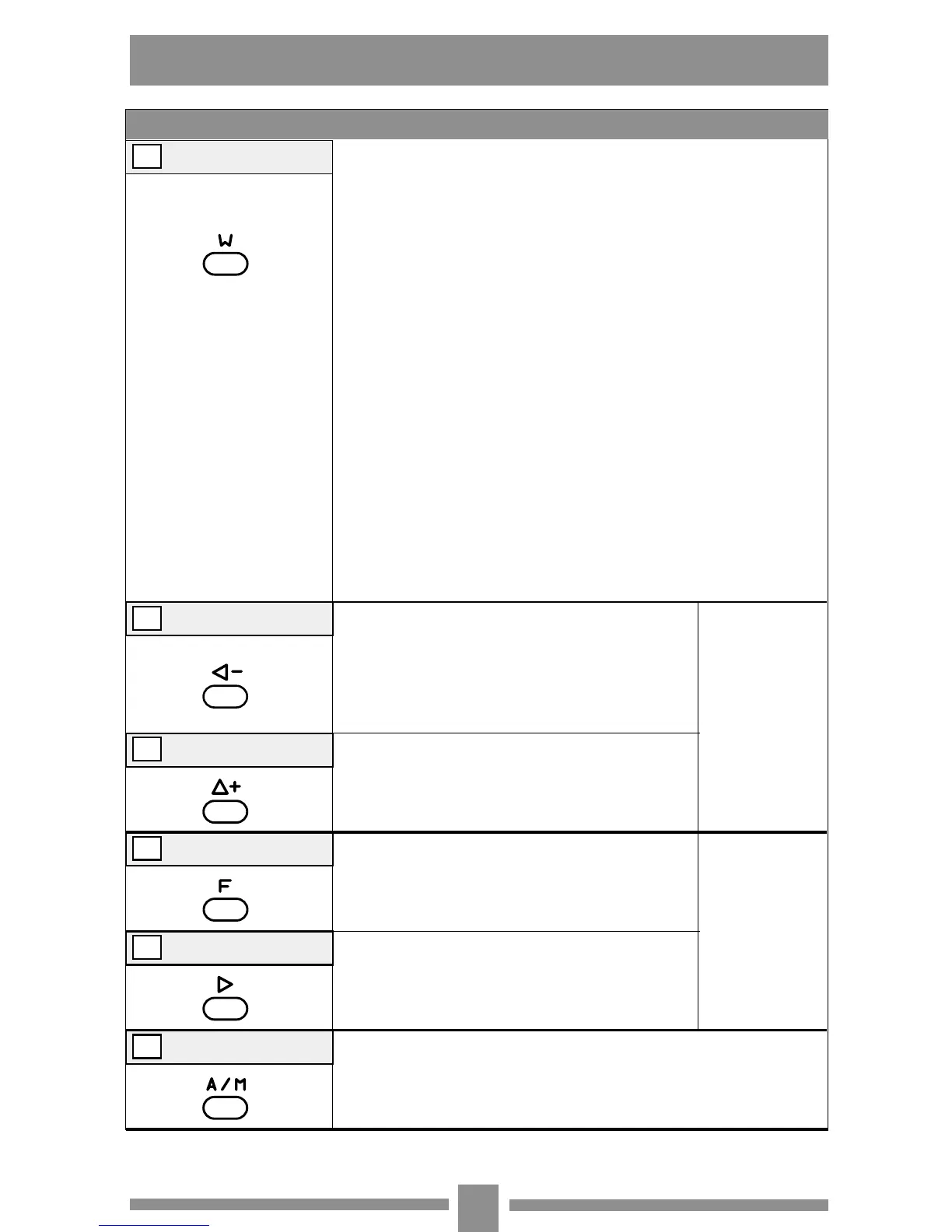

Ascon tecnologic XS Series User Manual

5
Standard configuration:
(1 Local + 4 storable used for:
• modifying the Set point
• recalling the 4 memorized Set points
(see enclosed leaflet)
Remote Set configuration:
(1 Local + 1 Remote) used for:
• passing from Local to Remote Set point
and viceversa (see enclosed leaflet)
Programmed Set configuration:
(see chapter 11)
• to recall the Local operating Set point
• to start, stop, start again the
execution of the memorized programme
Selects the digit to be modified
(see enclosed leaflet)
In Manual operation, decrements the
value of main output Y1
Keys for
modifying
numeric
values of
any data
Increments the value of the flashing
digit, from 0.9
In manual operation increments the
value of main output Y1
Permits access to menu of functions
to be programmed
Keys for data
programming
and
processing
Enter or Scroll of values and modes
of operation
Passage from Automatic to Manual operation and
viceversa
16 - Set Point
17 - Digit selection
18 - Increment digit
19 - Functions
20 - Enter
21 - Auto/Man
KEYS
2 • FUNCTION OF KEYS AND DISPLAYS
