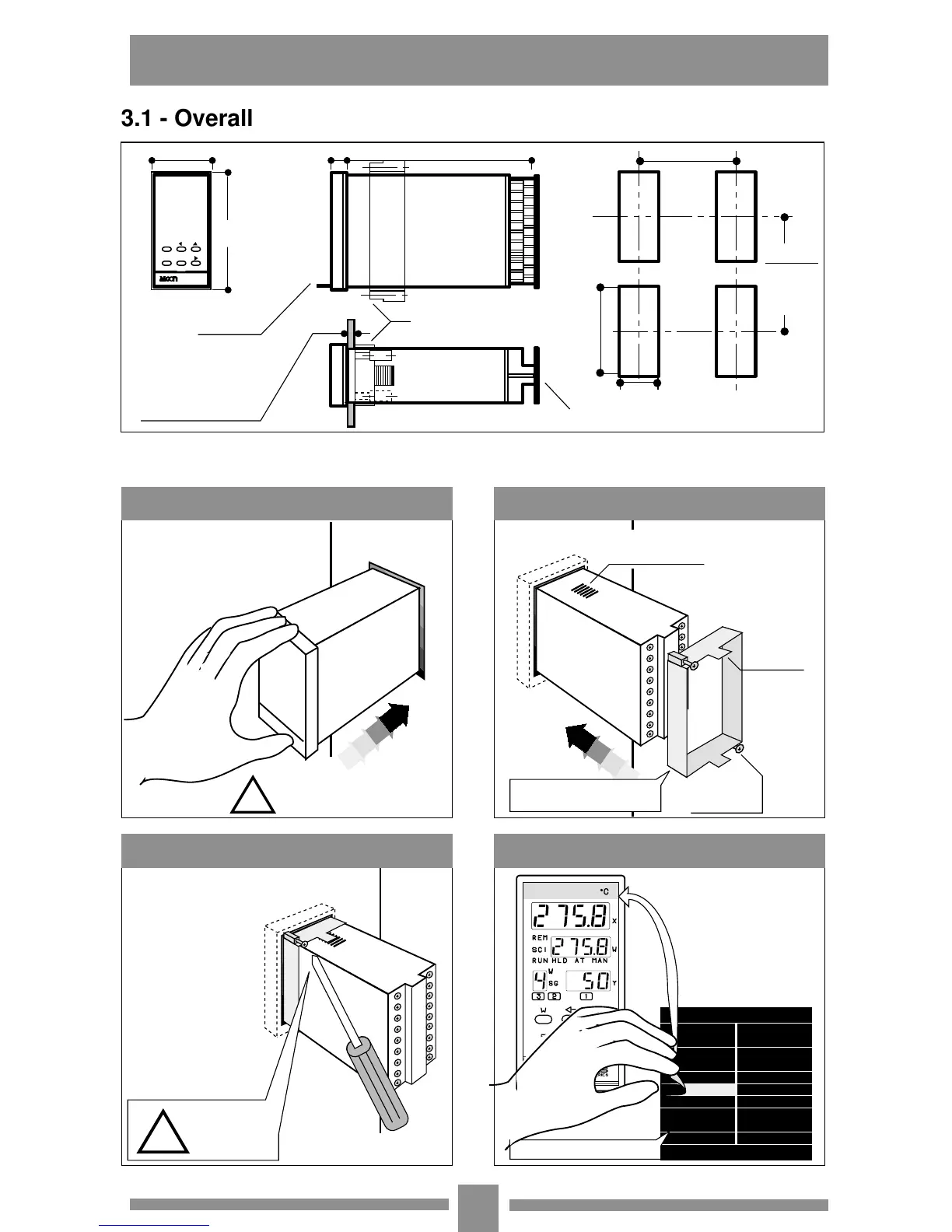

3.1 - Overall dimensions (in compliance with DIN 43700)
3.2 - Panel installation
Knurl for hook
hold
Holding
hooks
Locking
screws
Seal ring fitting
14
150
Advised
thickness 1 ÷ 16
48
96
Ring with hook
and locking screw
Wiring protection plate
Front cover
projection
W
-+
FA/M
!
AMBIENT
Temperature: 0 ÷ 50°C
Humidity : 30 ... 85uR%
IInstall away from:
• heat sources
• corrosive gases
• dusty environments
Do NOT force
!
cross-screwdriver
%
HR%
mV
V
A
kW
psi
Bar
°F
MPa
l/m
m
3
/h
Nm
3
/h
CO%
O
2 %
m
rh
Pa
kPa
mA
labels supplied
if different from
°C, remove and
apply plate with
requested unit.
Panel apertures
B • Fixing with ringA • Panel fitting
C • Screw locking D • Plate for engineering units
45
+0.6
92
+0.8
110 min.
150 min.
with
protection
IP65
60 min.
65 min.
with
protection
IP65
3 • DIMENSIONS - INSTALLATION
