ascon G2 Series User Manual

é 0
é Off
é 0:1
é 0.5
é 10:.0
é 0.0
é100.0
é Off
é Off
é 10
é 0.5
é 60
é 0ff
é100.0
é 0.5
é 10:.0 é 1
é9600
éjbus
t.fil
In.sh
t.saM
OP.Hy
t.c.
Op. l
Op. H
Op.r
st.Op
tc.C
d.bnd
Op.CH
Op.rC
MU.hy
Addr
baud
prot
Menu
InP
Menu
Out
MU.tM
st.tM
Menu
CoMM
Menu
Accs
Menu
Conf
22

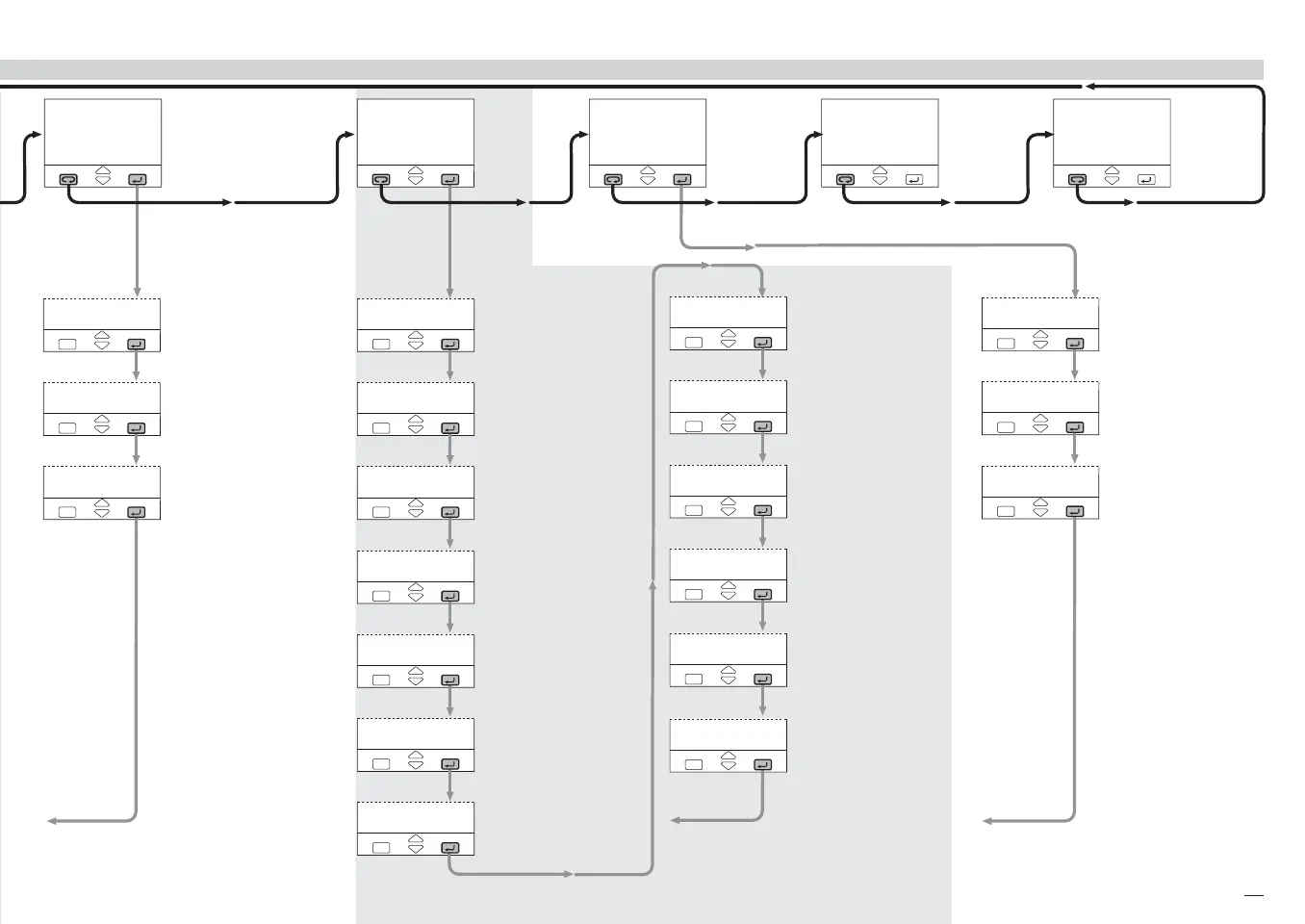

4 - Operation
Filter time constant
(user enabled/disabled)
Off/0.2…999.9 seconds
Measure bias
Off/-60…60 digit
Sampling time
0.1…10 seconds
Output hysteresis
(single parameter in case of
ON-OFF control algorithm)
0....5% full scale
Control Output
cycle time
(time proportioning only)
0.2…100.0 seconds
Control Output low limit
(not available in Heat/Cool
configuration)
0…100.0%
Control output
high limit
0…100.0%
Control output rate limit
(user enabled/disabled)
Off/0.01…99.99%/s
Control Output
soft start value
(user enabled/disabled)
Off/0.1…100.0%
Soft start function
activation time
(not available if st.Op = Off)
1…9999 seconds
Cool output cycle time
(only with Heat/Cool
time proportioning)
0.2…100.0 seconds
Dead band
(only with Heat/Cool config.)
0.0…5.0%
Cool output high limit
(user enabled/disabled)
(only with Heat/Cool config.)
0.0…100.0%
Cool output rate limit
(user enabled/disabled)
(only with Heat/Cool config.)
Off/0.01…99.99%/ s
Motor travel time
(only for motorised
positioners)
15…600 seconds
Minimum output step
(only for motorised
positioners)
0.1…5.0%
Address
Off/1…247
Baud rate
1200/ 2400/ 4800
9600
/ 19.200
Communication
protocol
Modb/ jbus
Back to
the 1st parameter
of the input menu
Back
to the 1st parameter
of the Output menu
Back to the
1st parameter of the
Serial Communication menu
Input
menu
Output
menu
Serial
communication
menu
Access
menu
(see page 27)
Configuration
menu
(see page 16)
