ascon M1 line User Manual

17

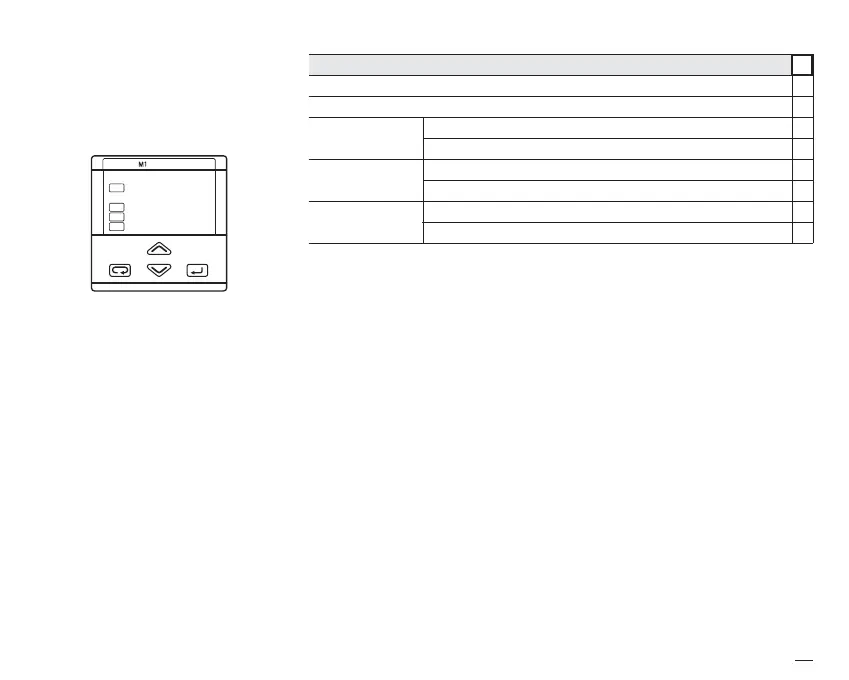

3 - Product coding
A
If, when the controller is powered
up for the first time, the display
shows the following message
it means that the controller has
not been configured yet.
The controller remains in stand-by
until the configuration code is set
correctly (see chapter 4.6 pag 26).
Conf
1
2
AT
Alarm 2 type and function
N
Not active
0
Sensor break alarm
1
Absolute
2
active high
3
active low
Deviation [1]
active high
4
active low
5
Deviation
band [1]
active out (of the band)
6
active in (the band)
7
Note
[1] Choice not available when the controller has been configured as 2 alarms indica-
tor ( L digit assigned to 4 or 5)
M1UK.ed5 14-05-2009 14:56 Pagina 17
