4 - Operations
Operator mode
Current setpoint
display
Setpoint
modification
Setpoint entry
The operation is
acknowledged
by one flash of
the display
4.3 PARAMETER SETTING
Press S or G momentarily to
change the value of 1 unit every
push
Continued pressing of S or G
changes the value, at rate that
doubles every second. Releasing
the button the rate of change
decreases.
In any case the change of the value
stops when it has reached the
max./min. limit set for the parame-
ter.

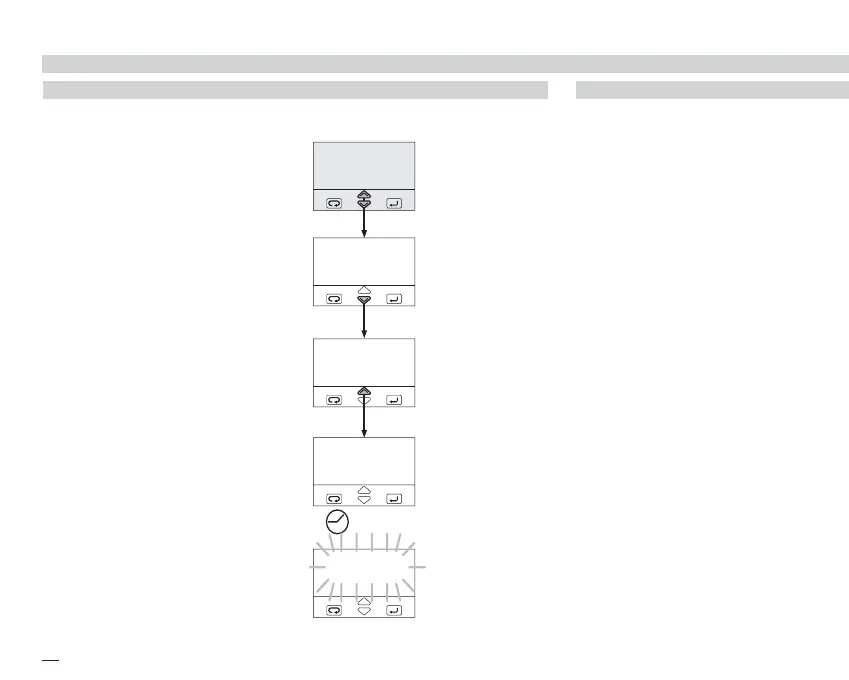

4.3.1 NUMERIC ENTRY
(i.e. the modification of the value of a stored Setpoint from 275.0 to 240.0)
4.3.2 MNEMONIC CODES SETTING
(e.g. configuration see pages 26, 27)
Press the S or G to display the
next or previous mnemonic for the
selected parameter.
Continued pressing of S or G
will display further mnemonics at a
rate of one mnemonic every 0.5 s.
The mnemonic displayed at the time
the next parameter is selected, is
the one stored in the parameter.
after 2 s
—decrease
—increase
274.8
275.0
230.0
240.0
240.0
