ASD Document 600541 Rev. G 27 TerraSpec® User Manual
www.asdi.com Chapter 4 Fiber Optic Interface
Step 5 On the instrument controller, exit any ASD applications that might be running
and communicating with the unit. Such applications include RS
3
and Indico.
Step 6 Ensure that the spectrometer is turned on.
Step 7 Start the Fiber Check application from the Start menu under
All
Programs->ASD Programs->RS3 Tools->Fiber Check.
Step 8 Ensure that the IP address configured is the one for the spectrometer.

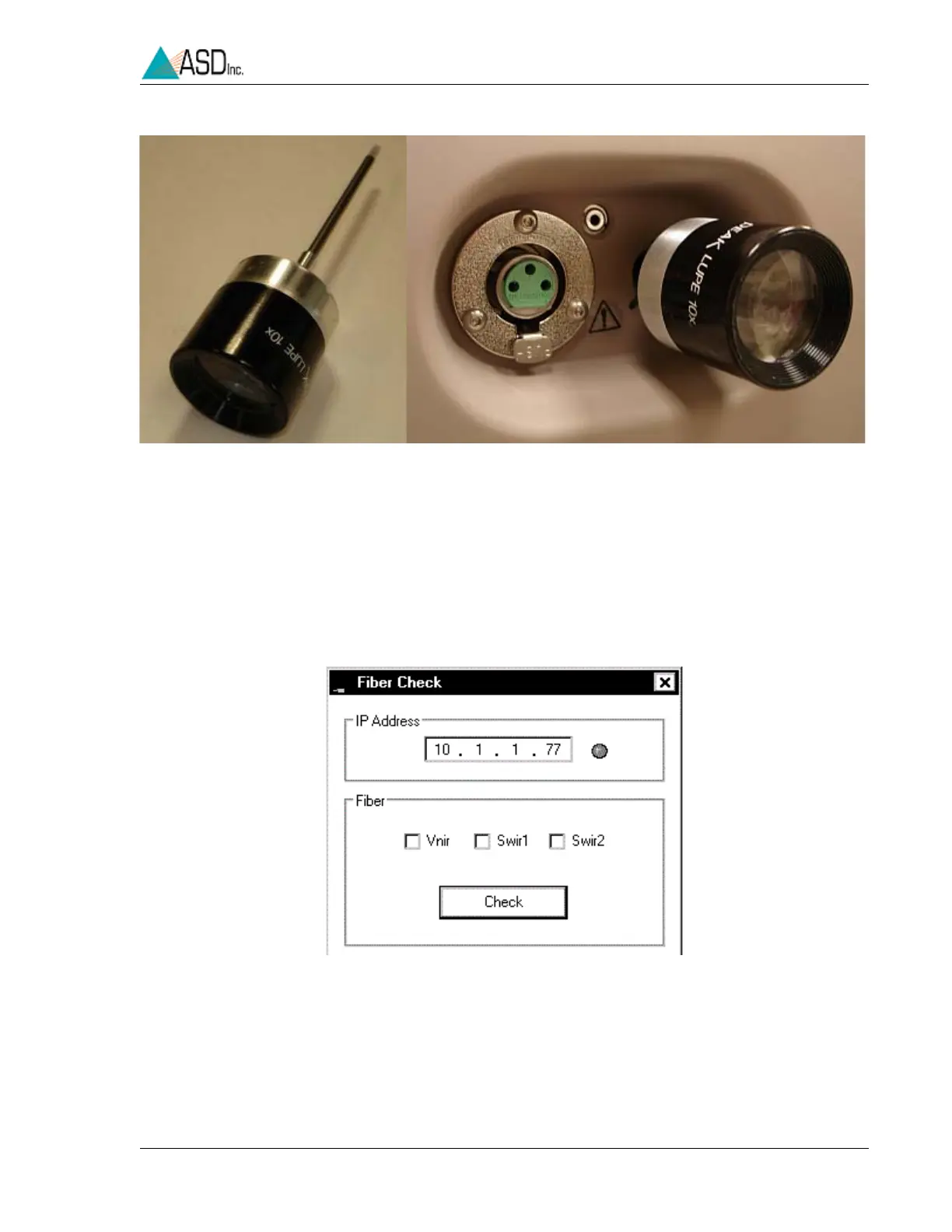

Figure 4-7 Magnifier for testing the internal fiber optic cable.
Figure 4-8 Fiber Check Program
