ASELSAN 4700 - Figure 2-4: Display Layout at Digital Mode; Figure 2-5: Display Layout at Analog Mode

4700 APCO25 CONVENTİONAL HANDHELD RADIO
OPERATING MANUAL
7610-4700-1201
Issue A
2-4
Appears when the radio makes a digital "Private" crypted broadcast at digital mode.
Appears when the radio makes a digital clear broadcast at digital mode.
Appears when the radio starts an analog call.

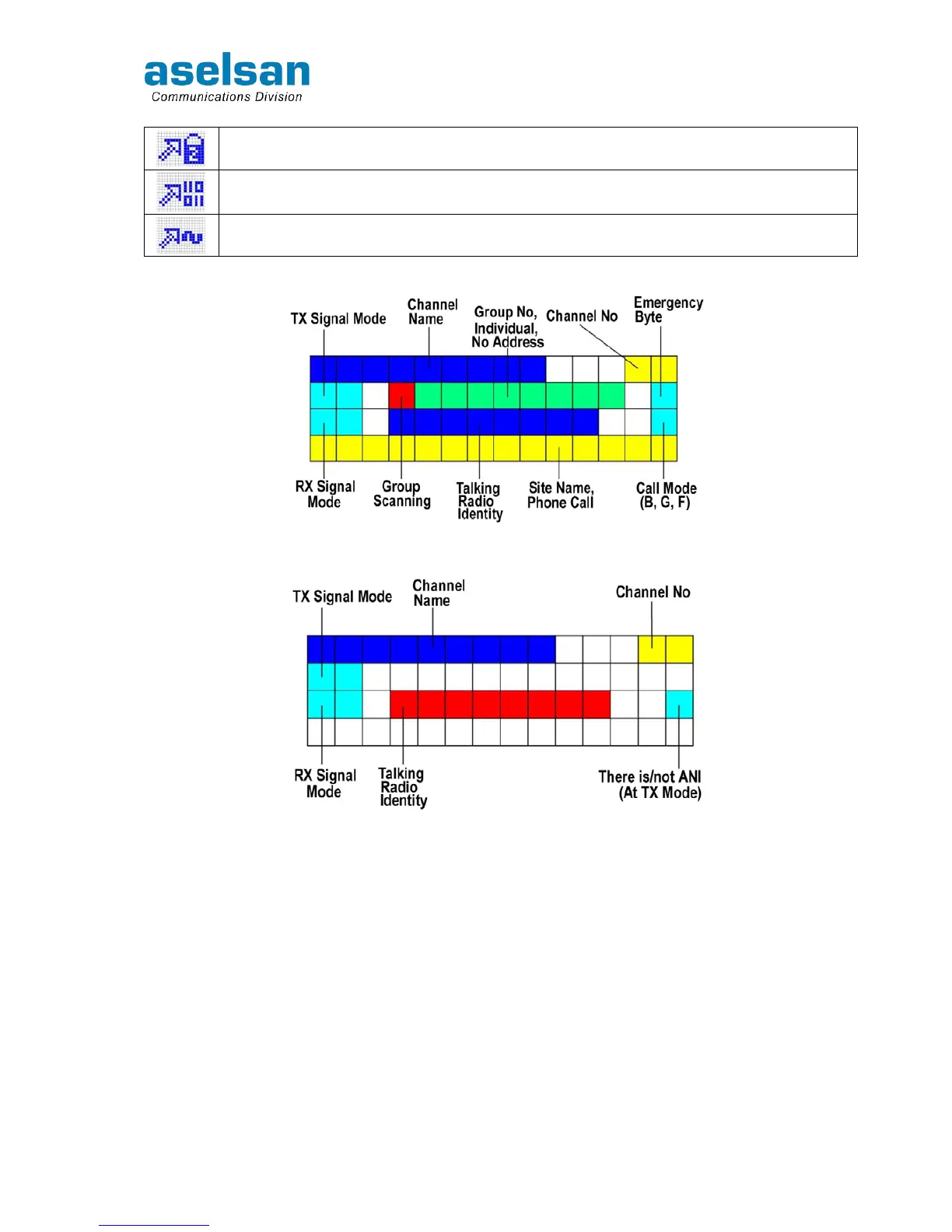

Figure 2-4: Display Layout at Digital Mode
Figure 2-5: Display Layout at Analog Mode
Lowest row of display is used as "show site name" when the radio is at stand by position.
"MENU"-"INDEX" options do not appear until a key is pressed from keypad.
