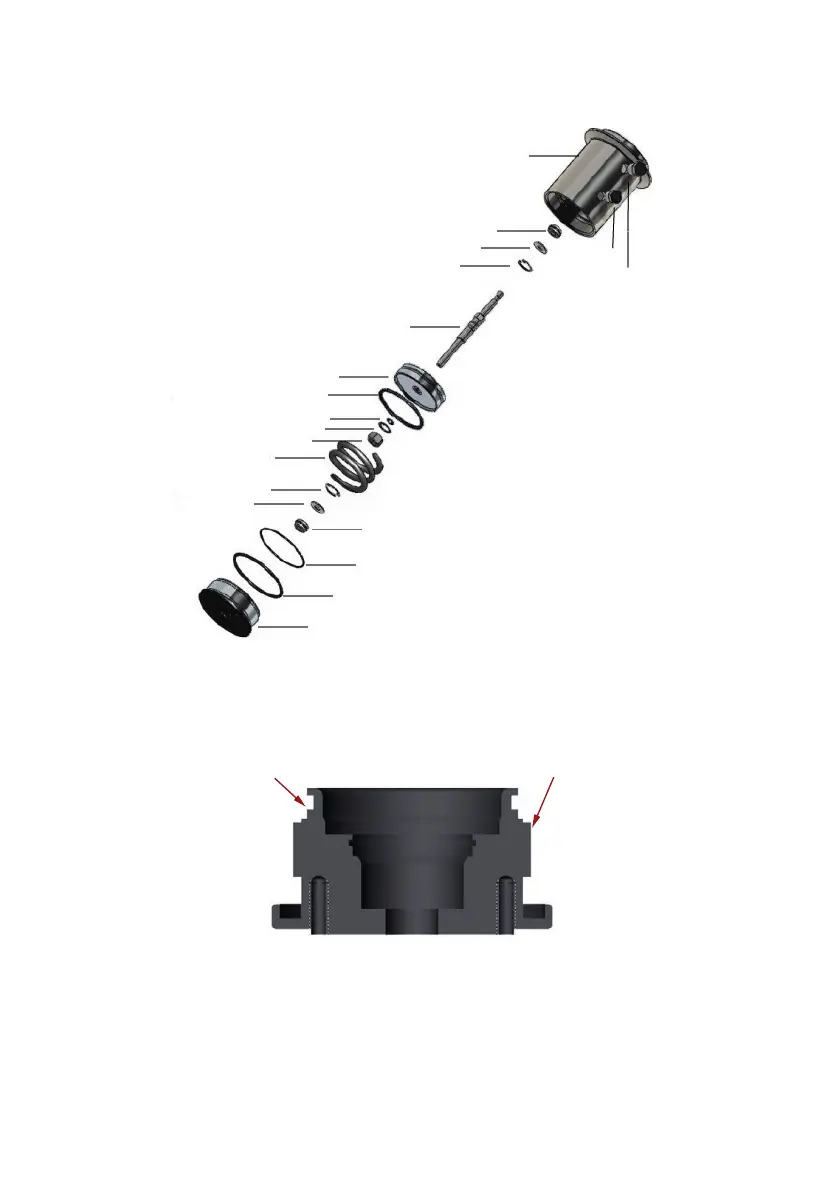

Step 3: Disassemble and reassemble the pneumatic actuator
Top
O-ring
O-ring
Guide bushing
Adapter
Breather
Sleeve
Guide bushing
Retainer
Snap ring
Shaft
Piston
Quad Ring
O-ring
Lock washer
Nut
Spring
Snap ring
O-ring
1. Place the actuator in a soft jaw vice (not supplied) with the top (black part) facing
up. Do not close the vice on the flange of the actuator.
2. Using a pin spanner/wrench, turn the top counter-clockwise and remove the top from
the actuator sleeve. Set the top on a flat surface.
3. Using snap ring pliers, remove the snap ring from the centre of the top.
