16. Spread the rest of the lubricant on the threads of the top. Reinstall the top onto the
sleeve.

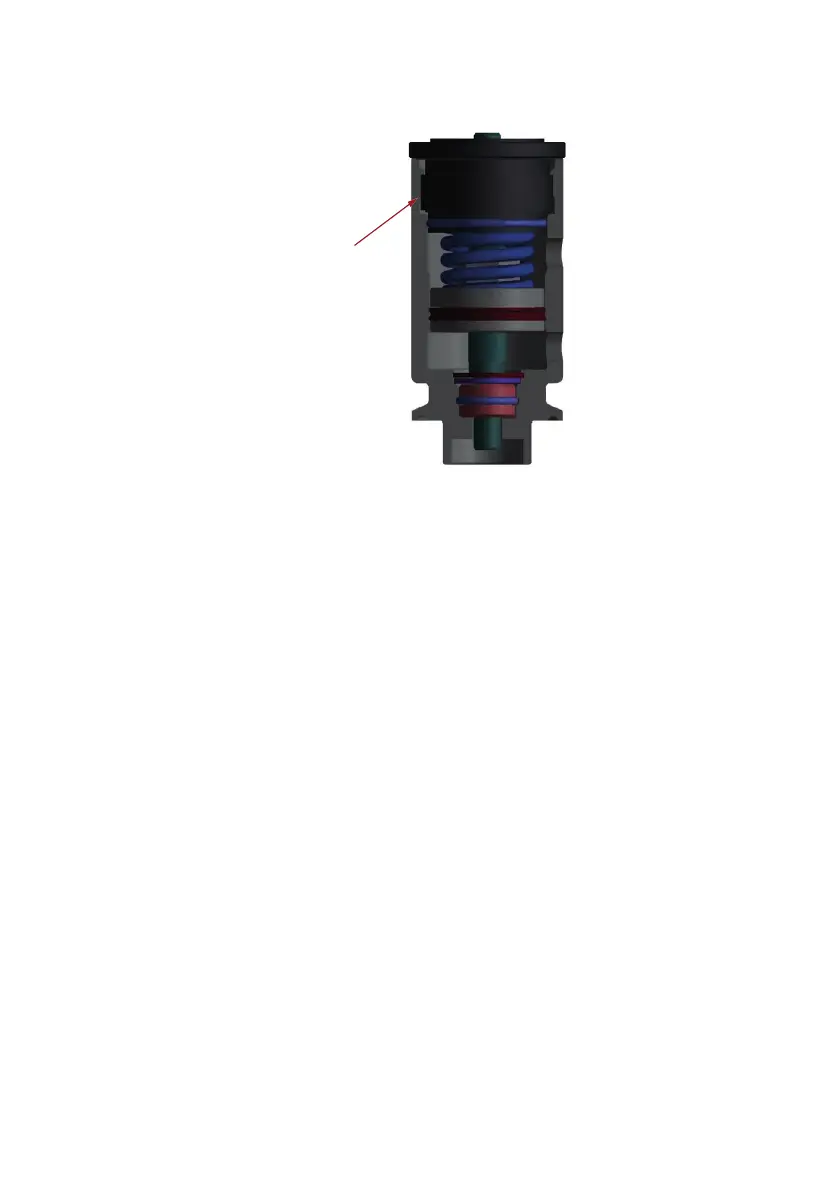

Apply silicone
lubricant to threads
prior to assembly
17. Turn the top clockwise until it is flush with the sleeve.
Step 4: Replace the diaphragm
Follow the instructions for "Install an elastomer diaphragm" on page15 or "Install a PTFE
diaphragm" on page16.
(b) PNXX-01 AKS series
Step 1: Remove the actuator and diaphragm assembly from the valve
Step 2: Remove the diaphragm
Follow the instructions for "Remove the diaphragm" on page17.
m-radialdiaphragmvalve-en-02 27
