Ashford DOUBLE DRIVE - Spinning Wheel Assembly Process; Flyer Unit and Maiden Bar Assembly

4
x 12

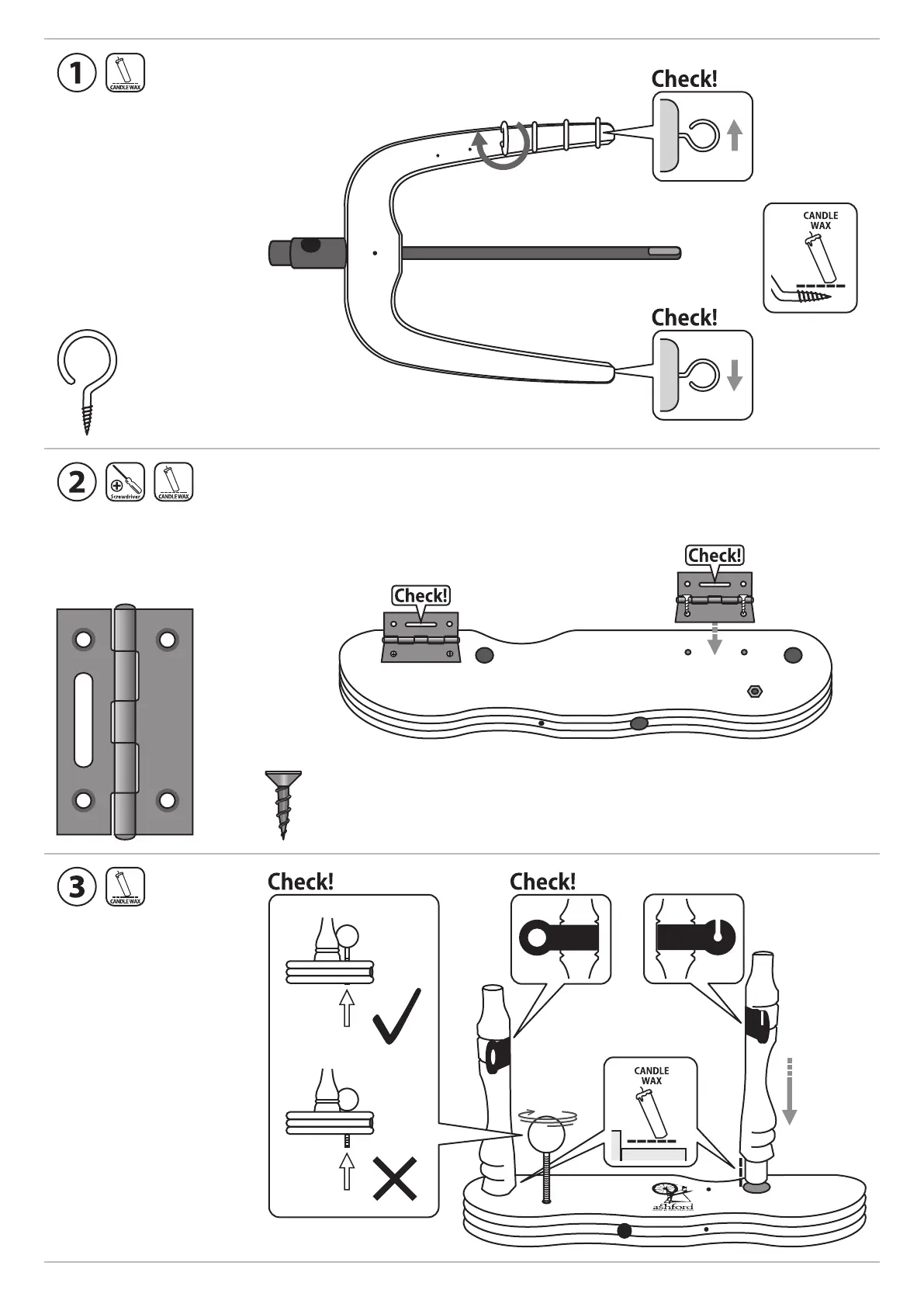

Thread 12 hooks into the
flyer.
x 2 x 4
Assemble the flyer unit.
Check the shape of the
nylon bearing on each
maid upright, then insert
into the correct hole. In-
sert the drive belt adjust-
ing knob into the maiden
bar, turn until the end
just protrudes.
Secure the 2 hinges to
the maiden bar.
Note the position of the
slot in the hinge.
