Ashford DOUBLE DRIVE - Page 5

5
x 2
x 2
x 1
x 1

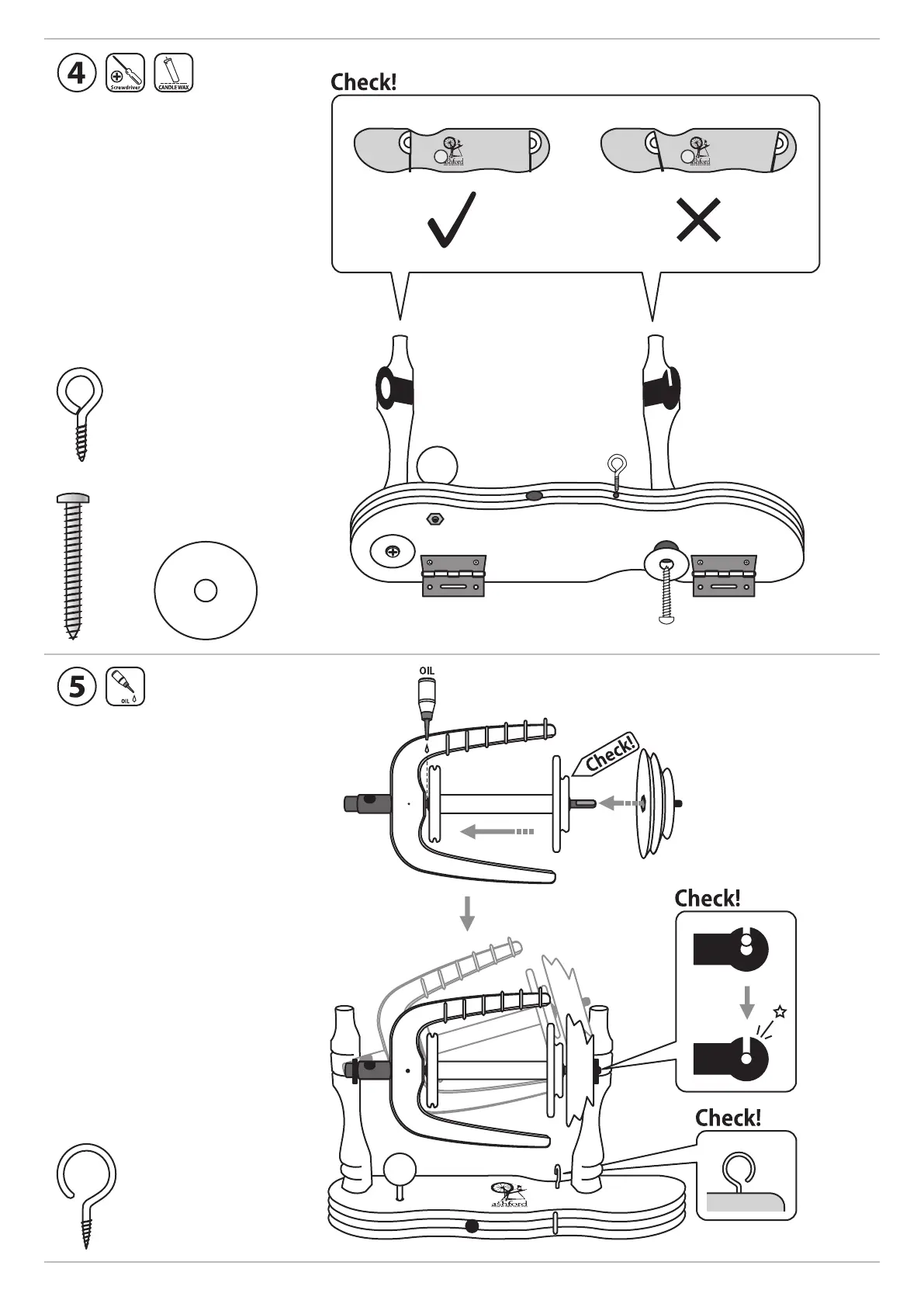

Check the angle of nylon
bearings and then se-
cure the maid uprights
with screws and wash-
ers. Do not overtighten.
The maid uprights may
be twisted to remove
the bobbin. Thread the
screw eye into the side
of the maiden bar.
Slide a bobbin onto the
flyer followed by the
whorl. Then locate the
flyer into the bearings.
Thread the screw hook
into the top.
