8
Back Rail M Lever Assembly N
M8 x 25 Washers
N NN N N N N
N
M
H
M6 x 80
Hex Head
Bolt
M6 x 16
Washer
M6 Barrel
Nut
M6 Barrel
Nut

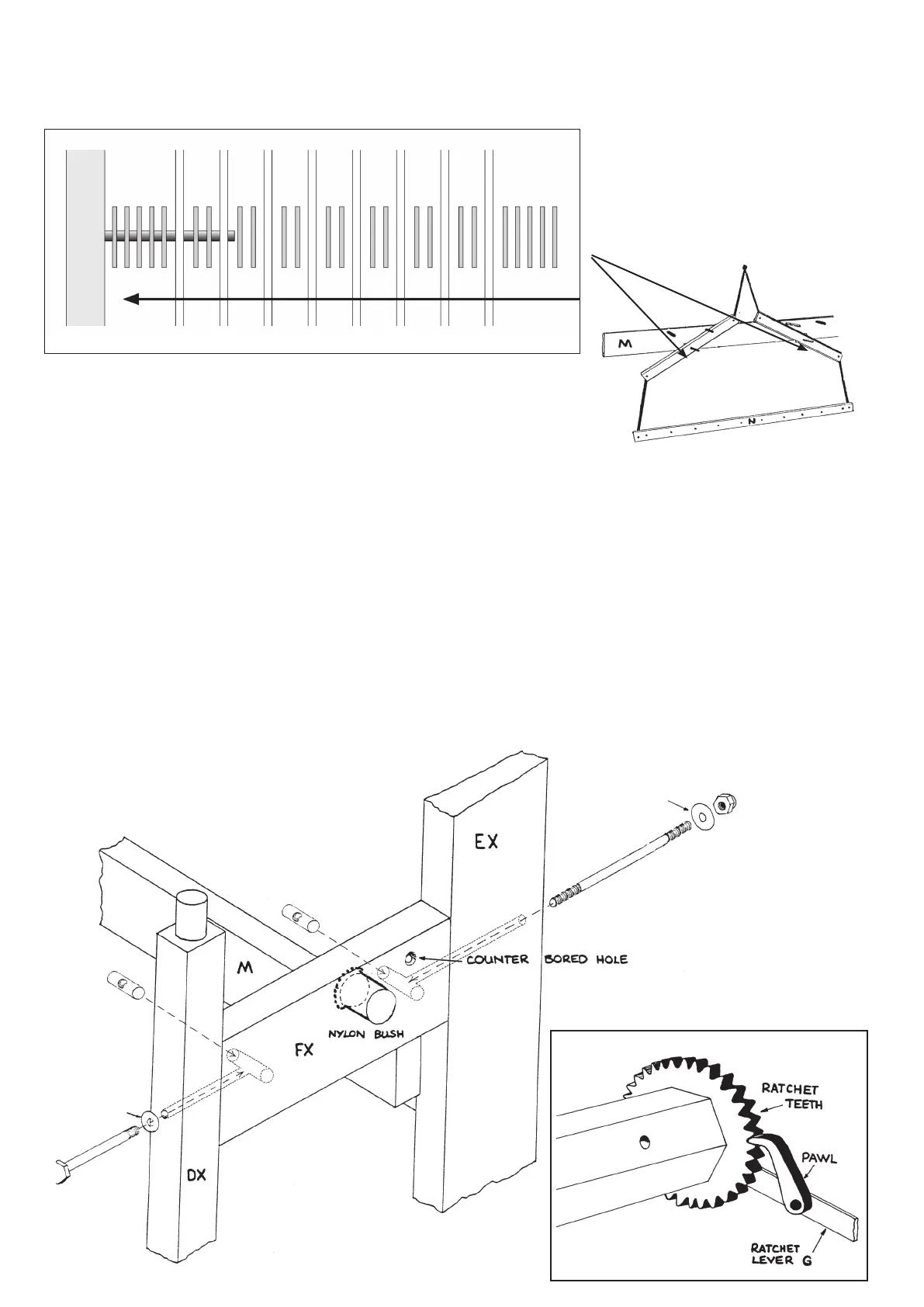

6. Apply a drop of oil onto the two lower steel rods. Then slide 5 x M8 x 25 washers onto the two lower steel rods followed
by a lever assembly N. Place two washers onto each lower steel rod followed by another lever assembly N. Repeat this
procedure until all the lever assemblies are in position, finishing with 5 washers.
7. Locate the second rail M onto the steel rods and secure to blocks O using two 8 x 2 Screws at each end.
8. Identify the cloth beam supports F (left) and FX (right). FX has a counter-bored hole on the outside.
9. Attach but do not tighten FX to DX with a M6 x 80 Hex Head Bolt, M6 X 16 Washer and M6 Barrel Nut and attach to EX with the M6 x
180 Threaded Rod with Dome Nut and M6 X 16 Washer. Repeat for the opposite side with F, D and E. Keeping the nylon bushes to
the inside. Note: The nylon bushes are towards the rear.
10. Slide the ratchet lever G onto the steel shaft on the cloth beam H and ensure the pawl engages the ratchet teeth.
11. Twist the cloth beam support FX up slightly and locate the cloth beam H into the nylon bush. Lower H so the holes in H and F
line up and then carefully tap a 5/8 x 75 Steel Shaft through the nylon bush and into H. Then tighten the bolts securing F and
FX.
M6 x 16
Washer
M6 x 180 Threaded Rod
and Dome Nut
To Next Page
