9

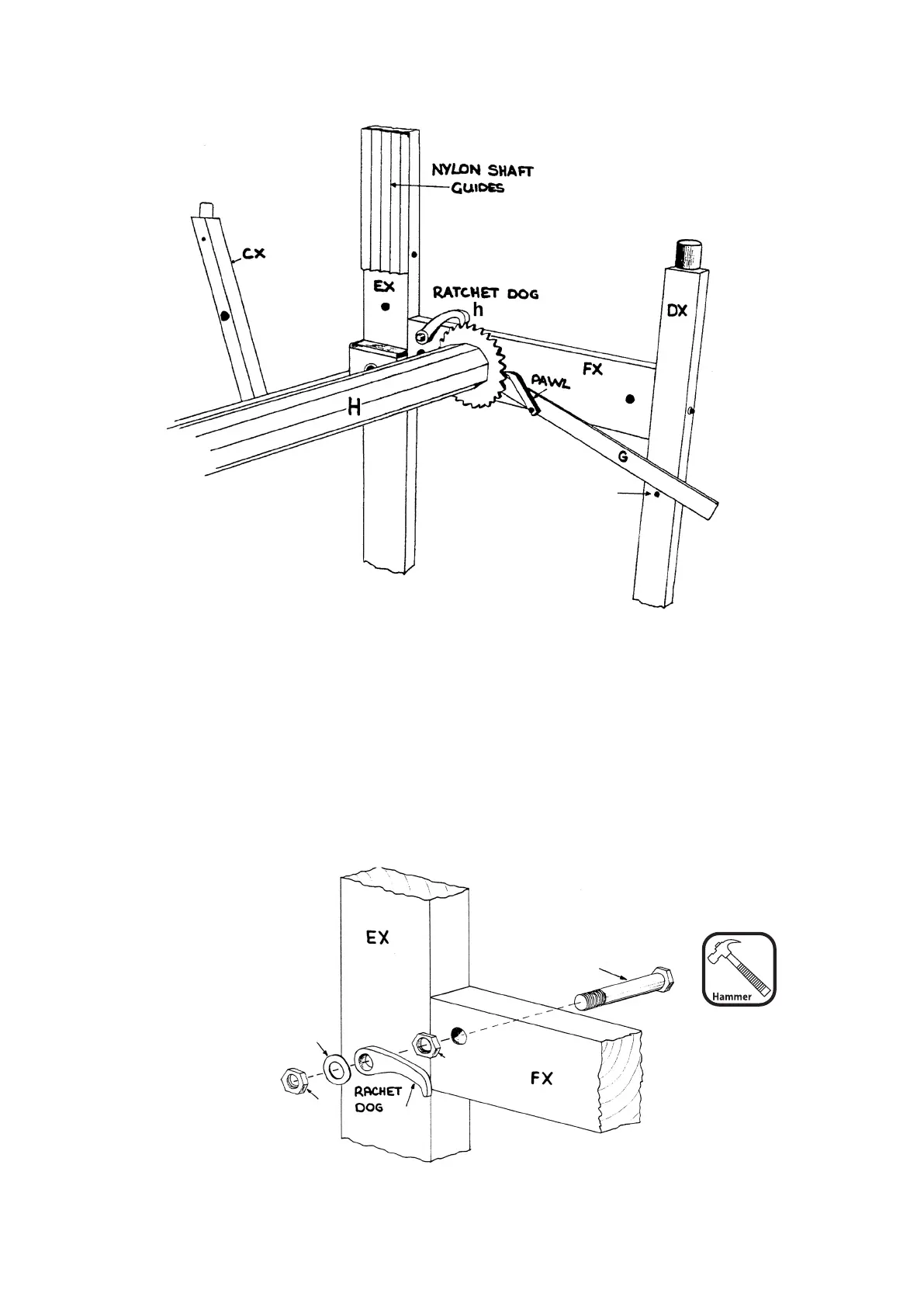

12. Insert the 12 x 1 Pan Head Screw into the inside of the front upright DX for a ratchet lever stop. When transporting the loom lift
and pull the lever sideways, then let it hang down.
13. Attach the ratchet dog to the right cloth beam support FX using a M8 x 50 Hex Head Bolt, M10 Hex Nut, M8 x 19 Washer and M8
Nylock Nut. Tap the head of the bolt into the counter-bored hole. Do not overtighten as the dog should move freely after
tightening the nut.
12 x 1 Pan
Head Screw
M10 Hex Nut
M8 x 50 Hex
Head Bolt
M8 x 19
Washer
M8 Nylock
Nut
TAP IN WITH
A HAMMER
