2
Parts
x2 x2
Tension knob Brake band
Threading hook
x2

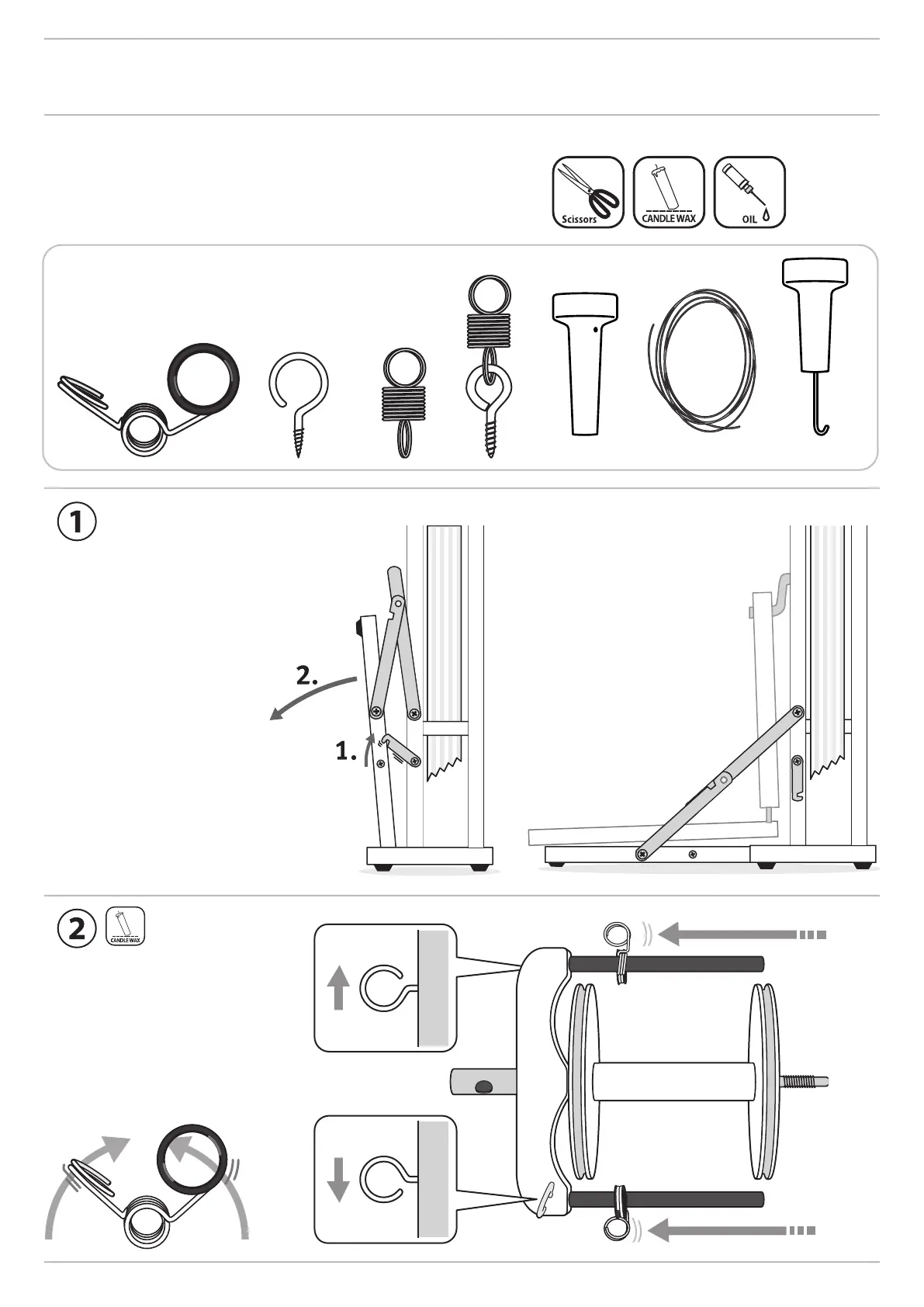

ASSEMBLY INSTRUCTIONS FOR JOY 2 SPINNING WHEEL
SINGLE AND DOUBLE TREADLE WITH A SLIDING HOOK FLYER
Your Joy 2 spinning wheel has been lacquered prior to
assembly. If desired, the application of Ashford Finishing Wax
Polish may further enhance its appearance.
Before commencing, please read the instructions completely,
identify the parts and note the assembly sequence.
Disengage the latch.
Note: The screw on the
treadle board has been
tightened for shipping.
Loosen the screw, fold the
treadle board down and
lock the metal stays into
position.
Wax, then thread the 2
hooks into the pilot holes in
the flyer base. Squeeze and
slide the stainless steel yarn
guides onto the flyer arms.
Tools Required
