-27-

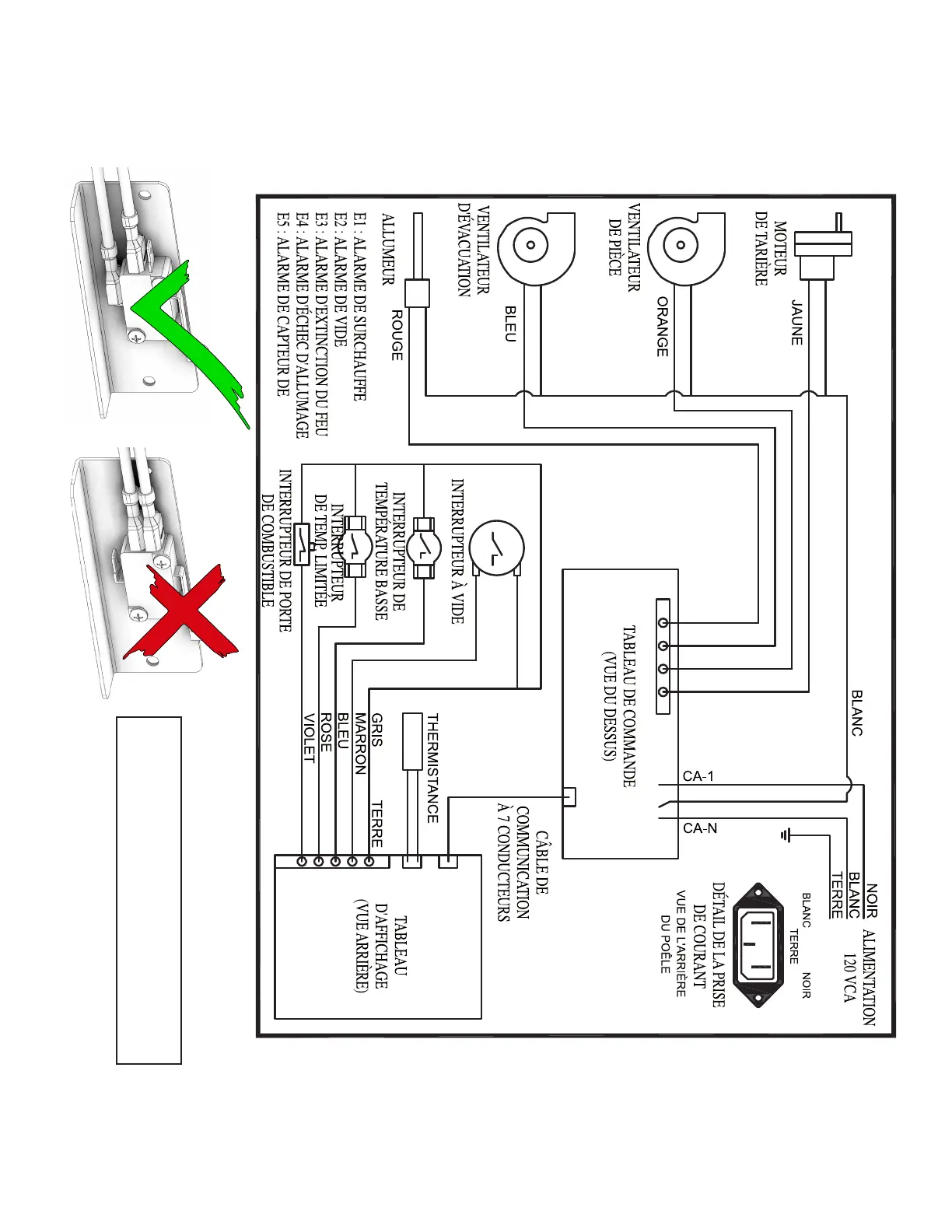

Schéma de câblage
CORRECT FAUX
Assurez-vous que les ls sont connectés aux
deux broches inférieures de l’interrupteur de
la trémie, comme illustré.
